$5,062.00 – $7,223.00

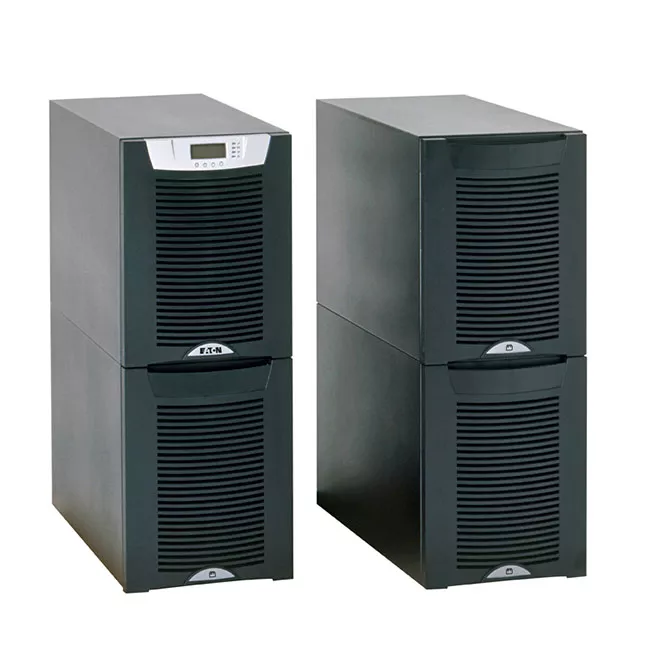

Extend the runtime of your Eaton 9155 UPS with External Battery Modules.
Up to 4 EBM 64s or up to 3 EBM 96s can be added to the 9155 UPS for additional runtime.
Built-in charger.
(UPS pictured not included in purchase price. Click here for 9155 UPS ordering information)
Extend the runtime of your Eaton 9155 UPS with External Battery Modules.
Up to 4 EBM 64s or up to 3 EBM 96s can be added to the 9155 UPS for additional runtime.
Built-in charger.
(UPS pictured not included in purchase price. Click here for 9155 UPS ordering information.)
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Select EBM Model | 9155 EBM 64 (2-high), 9155 EBM 96 (3-high) |
For narrow screens, swipe or scroll left/right on table to see more.
Eaton 9155 Technical Specifications | |
|---|---|
| POWER | |
| Ratings (kVA/Watts) | 8,10,12 and 15 kVA at 0.9 power factor |
| Topology | True double-conversion online UPS |
| ELECTRICAL INPUT | |
| Nominal Input Voltage | 200V-240V with neutral or with optional transformer |
| Input Voltage Range | -15%, +10% from nominal at 100% load without depleting battery |
| Operating Frequency | 50/60 Hz (45 to 65Hz) |
| Input Power Factor | P.F>0.99 typical, >0.96 frequency converter |
| Input Current Distortion | 5% THD |
| ELECTRICAL OUTPUT | |
| Nominal Output Voltage | 100/200, 110/220, 120/240 Vac 180° phase displacement; 120/208, 127/220 Vac 120° phase displacement |
| Output Voltage Regulation | ±1% Static; ±5% dynamic at 100% resistive load change,<1 ms response time |
| Efficiency | 90% typical |
| BATTERY | |
| Battery Type | 9Ah, sealed, lead-acid, maintenance-free |
| Battery Runtime | Expandable with additional battery cabinets. See runtime tab. |
| Battery Replacement | Field-replaceable |
| Charger | Default is 3.4A per battery string. Charger current is configurable from 0.5A to 25A per string with an overall maximum of 34A (limited by input current) |
| Start-On-Battery | Start-On-Battery Allows start of UPS without utility input |
| GENERAL | |
| Diagnostics | Full system self-test at startup |
| UPS Bypass | Automatic on overload or UPS failure |
| Parallel for Redundancy and Capacity | Yes, using Powerware Hot Sync technology |
| Dimensions (HxWxD in.) | 2-high — 32.2 x 12 x 33.7 3-high — 47.8 x 12 x 33.7 Optional Power Distribution Unit — 16.5 x 12 x 7 Optional Parallel Tie Cabinet — 24 x 20.3 x 2.2 2-high Extended Battery Module — 32.2 x 12 x 30.2 3-high Extended Battery Module — 47.8 x 12 x 30.2 |
| Weight (Lbs.) | 2-high (UPS + 1 battery) — 352 3-high (UPS + 2 batteries) — 590 3-high (UPS + 1 battery + 1 transformer) — 558 Optional Power Distribution Unit — 25 Optional Parallel Tie Cabinet — 80 2-high Extended Battery Module — 480 3-high Extended Battery Module — 710 |
| Overload | 150% for 5 sec / 125% for 1 min (online), (Normal Operation) 110% for 10 min |
| CERTIFICATIONS | |
| Safety Certifications | NOM-0190SCFI-1993, UL 1778, CSA C22.2, No. 107.3; EN 5502 Class A (CISPR22 Class A) and IEC 60950; IEC 62040-1-1 |
| EMC Compliance | IEC 62040-2, FCC Part 15, ICES-003, VCCI |
| Quality | ISO 9001: 2000 and ISO 14001:1996 |
| Markings | UL, cUL, CSA, CE and NOM-NYCE |
| COMMUNICATIONS | |
| LCD display | Graphical LCD with blue backlight |
| LEDs | (4) LEDs for notice and alarm |
| Audible Alarms | Yes |
| Communication ports | (1) relay contact, (1) REPO, (2) environmental input |
| Communication slot | (2) X-Slot communication bays |
| Power management | Bundled software suite CD software |
| ENVIRONMENTAL | |
| Operating temperature | 10°C to +40°C, +45°C with 7.5% derating; Batteries recommended max. +25°C |
| Storage temperature | –15°C to +25°C |
| Relative humidity | 0–95%, non-condensing |
| Audible noise | < 53 dBA at 1 meter (noise less room) typical |
| Altitude | < 1000m at +40°C, < 3000m at +25°C |
[wpfilebase tag=browser id=56 /]
For narrow screens, swipe or scroll left/right on table to see more.
9155 Battery Runtimes | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Load (VA/Watts) | UPS + Internal 32 Battery | +1 EBM 64 | +2 EBM 64 | +3 EBM 64 | +4 EBM 64 | UPS + Internal 64 Battery | +1 EBM 96 | +2 EBM 96 | +3 EBM 96 |
| 15000/13500 | 4.6 | 23 | 43 | 65.1 | 88.6 | 13.3 | 43 | 76.7 | 113 |
| 14500/13050 | 4.9 | 24.1 | 45.2 | 68.3 | 93 | 14.1 | 45.2 | 80.5 | 119 |
| 14000/12600 | 5.2 | 25.2 | 47.3 | 71.5 | 97.4 | 14.9 | 47.3 | 84.2 | 125 |
| 13500/12150 | 5.5 | 26.4 | 49.4 | 74.7 | 102 | 15.8 | 49.4 | 88.1 | 130 |
| 13000/11700 | 5.8 | 27.6 | 51.6 | 78.1 | 106 | 16.7 | 51.6 | 92 | 136 |
| 12500/11250 | 6.1 | 28.8 | 54 | 81.6 | 111 | 17.6 | 54 | 96.2 | 142 |
| 12000/10800 | 6.5 | 30.2 | 56.5 | 85.5 | 116 | 18.6 | 56.5 | 101 | 149 |
| 11500/10350 | 6.9 | 31.6 | 59.3 | 89.7 | 122 | 19.2 | 59.3 | 106 | 156 |
| 11000/9900 | 7.3 | 33.3 | 62.4 | 94.4 | 129 | 20.2 | 62.4 | 111 | 164 |
| 10500/9450 | 7.8 | 35.1 | 65.9 | 99.6 | 136 | 21.4 | 65.9 | 117 | 174 |
| 10000/9000 | 8.4 | 37.2 | 69.8 | 106 | 144 | 22.6 | 69.8 | 124 | 184 |
| 9500/8550 | 9.1 | 39.6 | 74.2 | 112 | 153 | 24.1 | 74.2 | 132 | 196 |
| 9000/8100 | 9.9 | 42.3 | 79.4 | 120 | 163 | 25.7 | 79.4 | 141 | 209 |
| 8500/7650 | 10.8 | 45.5 | 85.2 | 129 | 175 | 27.6 | 85.2 | 152 | 225 |
| 8000/7200 | 11.9 | 49.1 | 91.9 | 139 | 189 | 29.8 | 91.9 | 164 | 242 |
| 7500/6750 | 13.1 | 53.2 | 99.7 | 151 | 205 | 32.3 | 99.7 | 178 | 263 |
| 7000/6300 | 14.6 | 58 | 109 | 164 | 224 | 35.2 | 109 | 194 | 286 |
| 6500/5850 | 16.3 | 63.5 | 119 | 180 | 245 | 38.6 | 119 | 212 | 314 |
| 6000/5400 | 18.4 | 70 | 131 | 198 | 270 | 42.5 | 131 | 234 | 346 |
| 5500/4950 | 20.1 | 77.6 | 145 | 220 | 300 | 47.2 | 145 | 259 | 383 |
| 5000/4500 | 22.4 | 86.6 | 162 | 245 | 334 | 52.6 | 162 | 289 | 428 |
| 4500/4050 | 25.2 | 97.4 | 182 | 276 | 376 | 59.2 | 182 | 325 | - |
| 4000/3600 | 28.6 | 110 | 207 | 313 | 426 | 67.1 | 207 | 369 | - |
| 3500/3150 | 32.8 | 127 | 238 | 359 | - | 77 | 238 | 423 | - |
| 3000/2700 | 38.3 | 148 | 277 | 418 | - | 89.7 | 277 | - | - |
| 2500/2250 | 45.6 | 176 | 329 | - | - | 107 | 329 | - | - |
| Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. |
Eaton 9155 Split-Phase (single-phase) UPS, 8-15 kVA, TAA compliant, 1200-240V input power 100/200V, 110/220V, 120/240V, 120/208V and 127/220V output power options. UL 924 certified to use with emergency lighting equipment.
Configurable with extra runtimes from battery modules or add transformer module and rear-mounted power distribution module (PDM) with integral maintenance bypass switch (MBS) and optional receptacles. Marine-grade shipboard 9155 is also available.
