Description

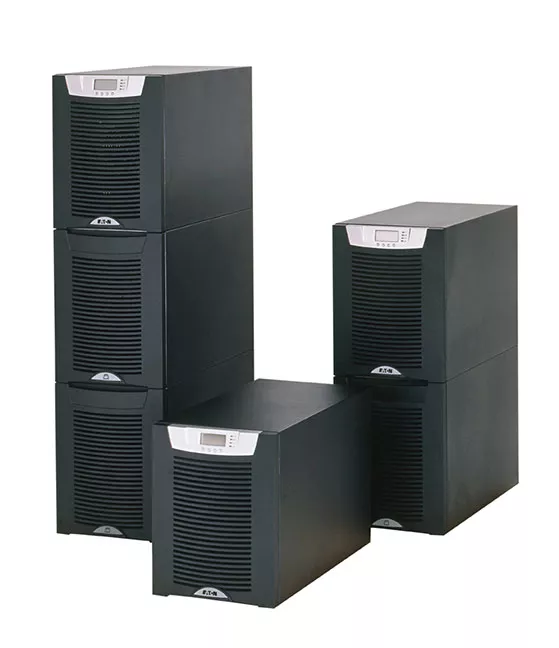

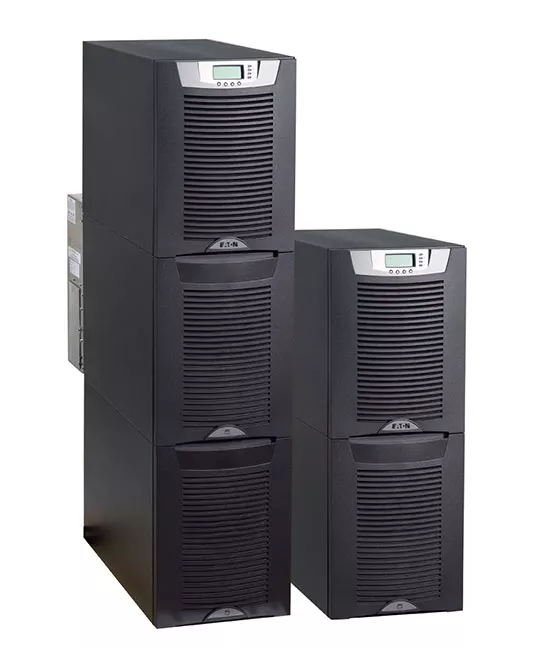

The Eaton 9155 Split-Phase UPS (formerly Powerware 9155 UPS) provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. It is also available as an emergency lighting UPS (UL 924 certified and tested, meets NFPA 101 and Life Safety building codes).
Packing maximum battery runtime into a very small footprint, the 9155 UPS is a complete online double-conversion power protection solution.
The innovative design delivers one of the industry’s best combinations of high efficiency, low input current distortion and highest power factor, while conserving valuable space and offering the most cost-effective, highest performance option available today.
11
The 9155 reduces total cost of ownership:
- More real power in less space with 0.9 output power factor
- Industry-leading power density with small footprint and more power capacity than comparable UPSs
- Scalable with 8-10 kVA and 12-15 kVA capacity upgrades
- Sleek tower design that includes internal batteries
Get maximum flexibility, availability and reliability in the 9155 with:
- integrated, customizable power distribution module that includes a maintenance bypass switch
- split-phase architecture
- paralleling of up to four UPS units for additional capacity and redundancy
- extended battery runtime options
- optional bypass to service the UPS without disturbing the load
- connectivity software for remote monitoring and management
- Eaton’s ABM technology for prolonged battery lifespan
Specifications
For narrow screens, swipe or scroll left/right on table to see more.
Eaton 9155 Technical Specifications | |
POWER | |
Ratings (kVA/Watts) | 8,10,12 and 15 kVA at 0.9 power factor |
Topology | True double-conversion online UPS |
ELECTRICAL INPUT | |
Nominal Input Voltage | 200V-240V with neutral or with optional transformer |
Input Voltage Range | -15%, +10% from nominal at 100% load without depleting battery |
Operating Frequency | 50/60 Hz (45 to 65Hz) |
Input Power Factor | P.F>0.99 typical, >0.96 frequency converter |
Input Current Distortion | 5% THD |
ELECTRICAL OUTPUT | |
Nominal Output Voltage | 100/200, 110/220, 120/240 Vac 180° phase displacement;
120/208, 127/220 Vac 120° phase displacement |
Output Voltage Regulation | ±1% Static; ±5% dynamic at 100% resistive load change,<1 ms response time |
Efficiency | 90% typical |
BATTERY | |
Battery Type | 9Ah, sealed, lead-acid, maintenance-free |

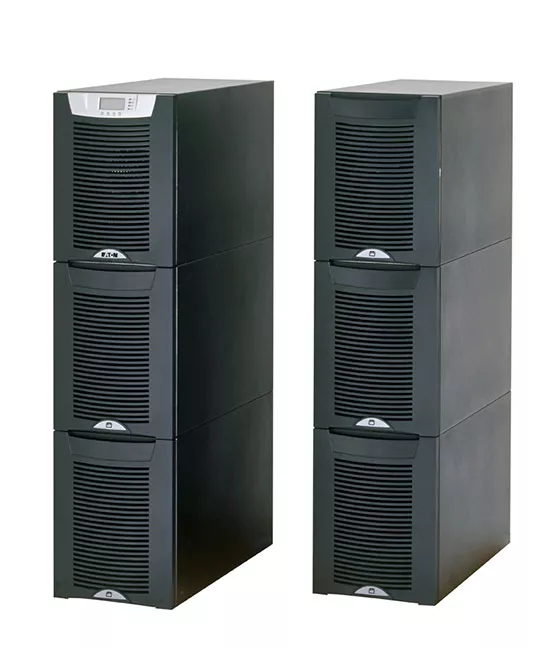

Battery Runtime | Expandable with additional battery cabinets. See runtime tab. |
Battery Replacement | Field-replaceable |
Charger | Default is 3.4A per battery string. Charger current is configurable from 0.5A to 25A per string with an overall maximum of 34A (limited by input current) |
Start-On-Battery | Start-On-Battery Allows start of UPS without utility input |
GENERAL | |
Diagnostics | Full system self-test at startup |
UPS Bypass | Automatic on overload or UPS failure |
Parallel for Redundancy and Capacity | Yes, using Powerware Hot Sync technology |

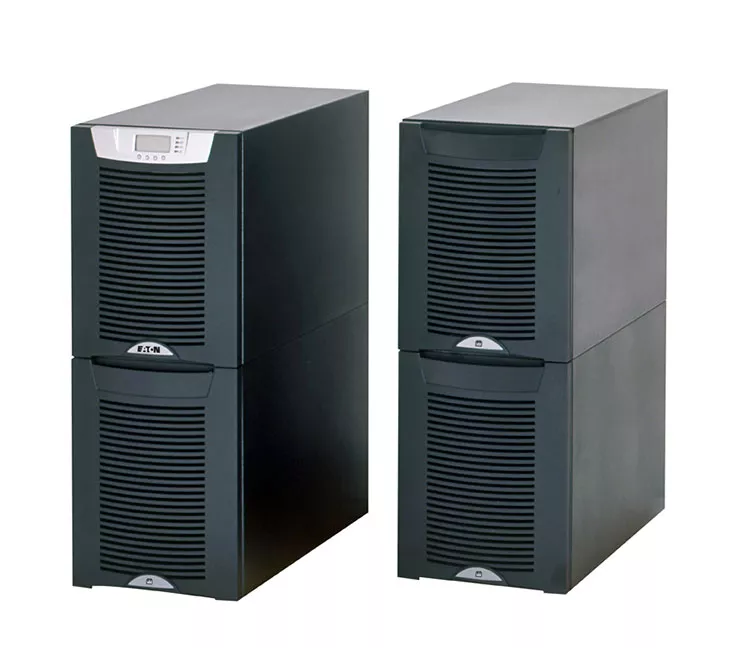

Dimensions (HxWxD in.) | 2-high — 32.2 x 12 x 33.7

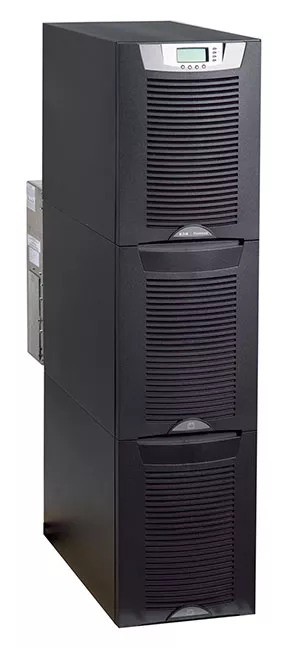

3-high — 47.8 x 12 x 33.7
Optional Power Distribution Unit — 16.5 x 12 x 7
Optional Parallel Tie Cabinet — 24 x 20.3 x 2.2
2-high Extended Battery Module — 32.2 x 12 x 30.2
3-high Extended Battery Module — 47.8 x 12 x 30.2 |
Weight (Lbs.) | 2-high (UPS + 1 battery) — 352
3-high (UPS + 2 batteries) — 590
3-high (UPS + 1 battery + 1 transformer) — 558
Optional Power Distribution Unit — 25
Optional Parallel Tie Cabinet — 80
2-high Extended Battery Module — 480
3-high Extended Battery Module — 710 |
Overload | 150% for 5 sec / 125% for 1 min (online), (Normal Operation) 110% for 10 min |
CERTIFICATIONS | |
Safety Certifications | NOM-0190SCFI-1993, UL 1778, CSA C22.2, No. 107.3; EN 5502 Class A (CISPR22 Class A) and IEC 60950; IEC 62040-1-1 |
EMC Compliance | IEC 62040-2, FCC Part 15, ICES-003, VCCI |
Quality | ISO 9001: 2000 and ISO 14001:1996 |
Markings | UL, cUL, CSA, CE and NOM-NYCE |
COMMUNICATIONS | |
LCD display | Graphical LCD with blue backlight |
LEDs | (4) LEDs for notice and alarm |
Audible Alarms | Yes |
Communication ports | (1) relay contact, (1) REPO, (2) environmental input |
Communication slot | (2) X-Slot communication bays |
Power management | Bundled software suite CD software |
ENVIRONMENTAL | |
Operating temperature | 10°C to +40°C, +45°C with 7.5% derating;
Batteries recommended max. +25°C |
Storage temperature | –15°C to +25°C |
Relative humidity | 0–95%, non-condensing |
Audible noise | < 53 dBA at 1 meter (noise less room) typical |
Altitude | < 1000m at +40°C, < 3000m at +25°C |
Runtimes
For narrow screens, swipe or scroll left/right on table to see more.
9155 Battery Runtimes | | | | | | | | | |
Load (VA/Watts) | UPS + Internal 32 Battery | +1 EBM 64 | +2 EBM 64 | +3 EBM 64 | +4 EBM 64 | UPS + Internal 64 Battery | +1 EBM 96 | +2 EBM 96 | +3 EBM 96 |
15000/13500 | 4.6 | 23 | 43 | 65.1 | 88.6 | 13.3 | 43 | 76.7 | 113 |
14500/13050 | 4.9 | 24.1 | 45.2 | 68.3 | 93 | 14.1 | 45.2 | 80.5 | 119 |
14000/12600 | 5.2 | 25.2 | 47.3 | 71.5 | 97.4 | 14.9 | 47.3 | 84.2 | 125 |
13500/12150 | 5.5 | 26.4 | 49.4 | 74.7 | 102 | 15.8 | 49.4 | 88.1 | 130 |
13000/11700 | 5.8 | 27.6 | 51.6 | 78.1 | 106 | 16.7 | 51.6 | 92 | 136 |
12500/11250 | 6.1 | 28.8 | 54 | 81.6 | 111 | 17.6 | 54 | 96.2 | 142 |
12000/10800 | 6.5 | 30.2 | 56.5 | 85.5 | 116 | 18.6 | 56.5 | 101 | 149 |
11500/10350 | 6.9 | 31.6 | 59.3 | 89.7 | 122 | 19.2 | 59.3 | 106 | 156 |
11000/9900 | 7.3 | 33.3 | 62.4 | 94.4 | 129 | 20.2 | 62.4 | 111 | 164 |
10500/9450 | 7.8 | 35.1 | 65.9 | 99.6 | 136 | 21.4 | 65.9 | 117 | 174 |
10000/9000 | 8.4 | 37.2 | 69.8 | 106 | 144 | 22.6 | 69.8 | 124 | 184 |
9500/8550 | 9.1 | 39.6 | 74.2 | 112 | 153 | 24.1 | 74.2 | 132 | 196 |
9000/8100 | 9.9 | 42.3 | 79.4 | 120 | 163 | 25.7 | 79.4 | 141 | 209 |
8500/7650 | 10.8 | 45.5 | 85.2 | 129 | 175 | 27.6 | 85.2 | 152 | 225 |
8000/7200 | 11.9 | 49.1 | 91.9 | 139 | 189 | 29.8 | 91.9 | 164 | 242 |
7500/6750 | 13.1 | 53.2 | 99.7 | 151 | 205 | 32.3 | 99.7 | 178 | 263 |
7000/6300 | 14.6 | 58 | 109 | 164 | 224 | 35.2 | 109 | 194 | 286 |
6500/5850 | 16.3 | 63.5 | 119 | 180 | 245 | 38.6 | 119 | 212 | 314 |
6000/5400 | 18.4 | 70 | 131 | 198 | 270 | 42.5 | 131 | 234 | 346 |
5500/4950 | 20.1 | 77.6 | 145 | 220 | 300 | 47.2 | 145 | 259 | 383 |
5000/4500 | 22.4 | 86.6 | 162 | 245 | 334 | 52.6 | 162 | 289 | 428 |
4500/4050 | 25.2 | 97.4 | 182 | 276 | 376 | 59.2 | 182 | 325 | - |
4000/3600 | 28.6 | 110 | 207 | 313 | 426 | 67.1 | 207 | 369 | - |
3500/3150 | 32.8 | 127 | 238 | 359 | - | 77 | 238 | 423 | - |
3000/2700 | 38.3 | 148 | 277 | 418 | - | 89.7 | 277 | - | - |
2500/2250 | 45.6 | 176 | 329 | - | - | 107 | 329 | - | - |
Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. | | | | | | | | | |
