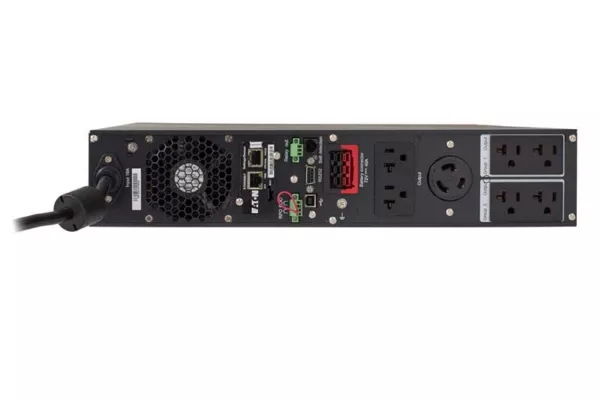

9PX, 2U, UPS, Back, Rack, Tower, Network, SNMP
9PX, 2U, UPS, Front, Rack, Tower
9PX, 2U, UPS, Front, Rack, Tower
9PX, 2U, UPS, Front, Rack, Tower
9PX, 2U, UPS, Hot, Swap, hot-swap, hot-swappable, battery, Rack, Tower
9PX, 2U, UPS, Front, Rack, Tower
9PX, 2U, UPS, Front, Rack, Tower
9PX, 2U, UPS, Front, Rack, Tower
9PX, 2U, UPS, Back, Rack, Tower, Network, SNMP
9PX, 2U, UPS, Front, Rack, Tower
9PX, 2U, UPS, Front, Rack, Tower
9PX, 2U, UPS, Front, Rack, Tower
9PX, 2U, UPS, Hot, Swap, hot-swap, hot-swappable, battery, Rack, Tower

9PX2000RTN

Call for Price: 855-665-3829

Email For Price



Eaton 9PX UPS Bundle, 2U, 2000 VA, 1800 W, Online Double-Conversion, 5-20P input, Outputs: (6) 5-20R + (1) L5-20R, 120V

*** Network Card Included ***

SKU: 9PX2000RTN Categories: , ,

Description

Delivering premium, double-conversion backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. An ENERGY STAR qualified UPS, the 9PX’s graphical LCD interface and robust target power management software makes managing your UPS easy – even in virtualized environments.

Get up to 50% longer overall battery life with Eaton’s Advanced Battery Management.

Extend your battery runtime with up to four external battery modules (EBM).

Receive notifications and alerts for power events with Eaton’s Intelligent Power Management software and SNMP connectivity (*Network Card, included in this model, or Gigabit Network Card required).

Additional information

Weight 62 lbs
Dimensions 23.8 × 17.3 × 3.4 in
Phase

UPS Type

Form Factor

Output (VA)

Watt Capacity

Input Voltage

, ,

Input Plug Type

Output Voltage

, , , ,

Outlet Types

,

U-Rack Height

Extended Runtime

Specifications

9PX Models (700-3000VA)
Catalog numberPower rating (VA/watts)Input connectionOutput receptaclesDimensions (HxWxD, in.) 2Weight (lb.)
120V output, 50/60 Hz
9PX700RT700/6305-15P(8) 5-15R3.4 (2U) x 17.3 x 17.736.4
9PX1000RT1000/9005-15P(8) 5-15R3.4 (2U) x 17.3 x 17.736.4
9PX1500RT1500/13505-15P(8) 5-15R3.4 (2U) x 17.3 x 17.742.5
9PX1500RT-L1500/13505-15P(8) 5-15R3.4 (2U) x 17.3 x 17.735.5
9PX1500RTN1500/13505-15P(8) 5-15R3.4 (2U) x 17.3 x 17.742.5
9PX1500RTN-L1500/13505-15P(8) 5-15R3.4 (2U) x 17.3 x 17.736.5
9PX2000RT2000/18005-20P(6) 5-20R, (1) L5-20R3.4 (2U) x 17.3 x 23.861.5
9PX2000RT-L2000/18005-20P(6) 5-20R, (1) L5-20R3.4 (2U) x 17.3 x 23.850.6
9PX2000RTN2000/18005-20P(6) 5-20R, (1) L5-20R3.4 (2U) x 17.3 x 23.861.5
9PX2000RTN-L2000/18005-20P(6) 5-20R, (1) L5-20R3.4 (2U) x 17.3 x 23.851.6
9PX3000RT3000/2700L5-30P(6) 5-20R, (1) L5-30R3.4 (2U) x 17.3 x 23.863.1
9PX3000RT-L3000/2700L5-30P(6) 5-20R, (1) L5-30R3.4 (2U) x 17.3 x 23.852.7
9PX3000RTN3000/2700L5-30P(6) 5-20R, (1) L5-30R3.4 (2U) x 17.3 x 23.863.1
9PX3000RTN-L3000/2700L5-30P(6) 5-20R, (1) L5-30R3.4 (2U) x 17.3 x 23.853.7
208V output, 50/60 Hz bundles
9PX1000GRT1000/900C14(8) C133.4 (2U) x 17.3 x 17.738.6
9PX1500GRT1500/1350C14(8) C133.4 (2U) x 17.3 x 17.741.4
9PX1500GRT-L1500/1350C14(8) C133.4 (2U) x 17.3 x 17.734.8
9PX2200GRT2200/2000C20 / L6-20P(8) C13, (2) C193.4 (2U) x 17.3 x 23.860.4
9PX2200GRT-L2200/2000C20 / L6-20P(8) C13, (2) C193.4 (2U) x 17.3 x 23.848.6
9PX3000GRT3000/3000C20 / L6-20P(8) C13, (2) C193.4 (2U) x 17.3 x 23.860.4
9PX3000GRT-L3000/3000C20 / L6-20P(8) C13, (2) C193.4 (2U) x 17.3 x 23.850.2
9PX3000GLRT3000/3000C20 / L6-20P(1) L6-30R, (2) L6-20R3.4 (2U) x 17.3 x 23.860.4
9PX3K3UN3000/3000Terminal Block with L6-30P(2) L6-30R, (2) L6-20R5.1 (3U) x 17.3 x 28.4106
9PX3K3UNTF53000/3000Terminal Block with L6-30P(2) L6-20R, (1) L6-30R (18) 5-20R10.2 (6U) x 17.3 x 28.4201
9PX3K3UNP13000/3000L6-30P(1) L14-30R, (1) L6-30R, (6) 5-20R10.2 (6U) x 17.3 x 28.4203
9PX3K3UNP23000/3000HardwiredHardwired10.2 (6U) x 17.3 x 28.4201
9PX Technical Specifications
TopologyDouble-conversion, online
ConfigurationRack/tower
ColorBlack and silver
DiagnosticsFull system self-test at power up, ABM test every 30 days
Warranty2 years electronics and battery
Rail kit4-post rail kit included;
Max length:30.0in, Min length:17.4in
Tower pedestals included
Optional 2-post rail kit available, part number: 103007018-5591
Remote power offRemote On/Off (ROO) and Remote Power Off (RPO) rear terminal blocks
Contents (Ships with the following items)UPS
4-post rail kit
Safety manual
User manual
Output cables (for G models)
Input cables (for G models)
Cable lockers (for G models)
Tower pedestals
RS-232 serial cable
USB cable
Communication Card (Optional)
Electrical input
208V
120V
Nominal voltage208V default (200/208/220/230/240V)120V default (100/110/120/125V)
Input voltage rangeFull load: 176-276V,
<40% load: 100-276V		Full load: 100-144V,
<30% load: 60-144V
Frequency50/60 Hz50/60 Hz
Frequency range60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
Input power factor> .99> .99
Input current distortion< 5% ( < 10% frequency converter mode)< 5% ( < 10% frequency converter mode)
Circuit breaker2200VA: None
3000VA: None		2000VA: None
3000VA: (3) 20A for (2) 5-20R each
Electrical output
208V
120V
Power ratings9PX700RT: 700VA / 630W
9PX1000GRT: 1000VA / 900W9PX1000RT: 1000VA / 900W
9PX1500GRT & 9PX1500GRT-L
220/230/240V: 1500VA / 1500W
200/208V: 1350		9PX1500RT & 9PX1500RT-L
120/125V: 1500VA / 1350W
110V: 1350VA / 1215W
100V: 1200VA / 1080W
9PX2200GRT & 9PX2200GRT-L:
220/230/240V: 2200VA / 2200W
208/200V: 2200VA / 2000W		9PX2000RT& 9PX2000RT-L:
120/125V: 2000VA / 1800W
110V: 1800VA / 1620W
100V: 1600VA / 1440W
9PX3000GRT & 9PX3000GRT-L & 9PX3000GLRT & 9PX3K3U models:
220/230/240V: 3000VA / 3000W
208/200V: 3000VA / 2700W		9PX3000RT & 9PX3000RT-L:
120/125V: 3000VA / 2700W
110V: 2700VA / 2430W
100V: 2400VA / 2160W
Nominal voltage208V default (200/208/220/230/240V)120V default (100/110/120/125V)
Output voltage regulation, steady state±1% normal mode
±2% battery mode		±1% normal mode
±2% battery mode
Voltage THD (online)Linear: 3%
Non-linear: 5%		Linear: 3%
Non-linear: 5%
Power factor0.90.9
Efficiency9PX1000GRT: 90% online
9PX1500GRT: 91% online
9PX1500GRT-L: 92% online
9PX2200GRT: 93% online
9PX2200GRT-L: 93% online
9PX3000GRT: 93% online
9PX3000GRT-L: 93.7% online
9PX3000GLRT: 93% online
9PX3K3U Models: 93% online		9PX700RT: 89.9% online
9PX1000RT: 90% online
9PX1500RT: 90% online
9PX1500RT-L: 90% online
9PX2000RT: 91% online
9PX2000RT-L: 91.4% online
9PX3000RT: 91% online
9PX3000RT-L: 91.6% online
Transfer time0 ms0 ms
Battery
Optional extended battery module (EBM)Lead Acid
9PXEBM36RT: 700/1000 VA models
9PXEBM48RT: 1500 VA models
9PXEBM72RT: 2000-3000 models
9PXEBM180RT: 9PX3K3U Models

Lithium ion
9PXEBM48RT-L: 1500 VA models
9PXEBM72RT-L: 2000-3000 models		Lead Acid
9PXEBM36RT: 700/1000 VA models
9PXEBM48RT: 1500 VA models
9PXEBM72RT: 2000-3000 models

Lithium ion
9PXEBM48RT-L: 1500 VA models
9PXEBM72RT-L: 2000-3000 models
Maximum number of EBMsAdd up to 4 EBMsAdd up to 4 EBMs
Battery descriptionSealed, lead-acid; maintenance free
or
Lithium Ion (LFP Chemistry)		Sealed, lead-acid; maintenance free
or
Lithium Ion (LFP Chemistry)
Battery managementABM technology; 3-stage charging extends battery service life up to 50% and provides advance warning for battery replacementABM technology; 3-stage charging extends battery service life up to 50% and provides advance warning for battery replacement
Battery replacementHot-swappable internal batteries and EBMsHot-swappable internal batteries and EBMs
Start on batteryCold-start enabled; first cold start is always forbiddenCold-start enabled; first cold start is always forbidden
Communications
User interfaceGraphical display. UPS status in a single view.Graphical display. UPS status in a single view.
LEDs4 status-indicating LEDs4 status-indicating LEDs
Communication portsRS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables includedRS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
Communications cardNetwork Card-MS optional, standard on network bundles (bundled models include an N)Network Card-MS optional, standard on network bundles (bundled models include an N)
Power management softwareIntegrates with Eaton Intelligent Power Manager softwareIntegrates with Eaton Intelligent Power Manager software
Environmental & standards
RoHS complianceYesYes
Surge protectionMOV: 510V, 296JoulesMOV ratings : 271Volt (from L-N) and 510 Volt (from L-G and N-G), 190 Joules
EMC markingsIEC 62040-2 Class B Cat C2 / CISPR22
Class B / FCC part 15 Class B / VCCI Class B		IEC 62040-2 Cat C1 / CISPR22 / FCC part
15 Class B / VCCI Class B
Heat dissipation (BTU)9PX1000GRT: 267 online, 438 battery
9PX1500GRT: 494 online, 731 battery
9PX2200GRT: 513 online, 741 battery
9PX3000GRT: 619 online, 1150 battery
9PX3000GLRT: 619 online, 1150 battery		9PX700RT: 241 online, 440 battery
9PX1000RT: 330 online, 646 battery
9PX1500RT: 512 online, 897 battery
9PX2000RT: 578 online, 974 battery
9PX3000RT: 844 online, 1462 battery
Audible noise< 47 dB at 1 meter< 47 dB at 1 meter
Operating temperature0 to 40°C (32°F to 104°F)0 to 40°C (32°F to 104°F)
Altitude operating temperature range0-1500m @ 0°C - 40°C
1500m-3000m @ 0°C - 35°C		0-1500m @ 0°C - 40°C
1500m-3000m @ 0°C - 35°C
Safety conformanceCE / cULusCE / cULus / NOM
Storage temperature0 to 35°C (32°F to 95°F); without batteries: -15 to 55°C (5°F to 131°F)0 to 35°C (32°F to 95°F); without batteries: -15 to 55°C (5°F to 131°F)
Relative humidity0 to 96% non-condensing0 to 96% non-condensing
