Eaton 5S UPS, 700 VA, 420 W, Line Interactive, C14 input, Outputs: (6) C13

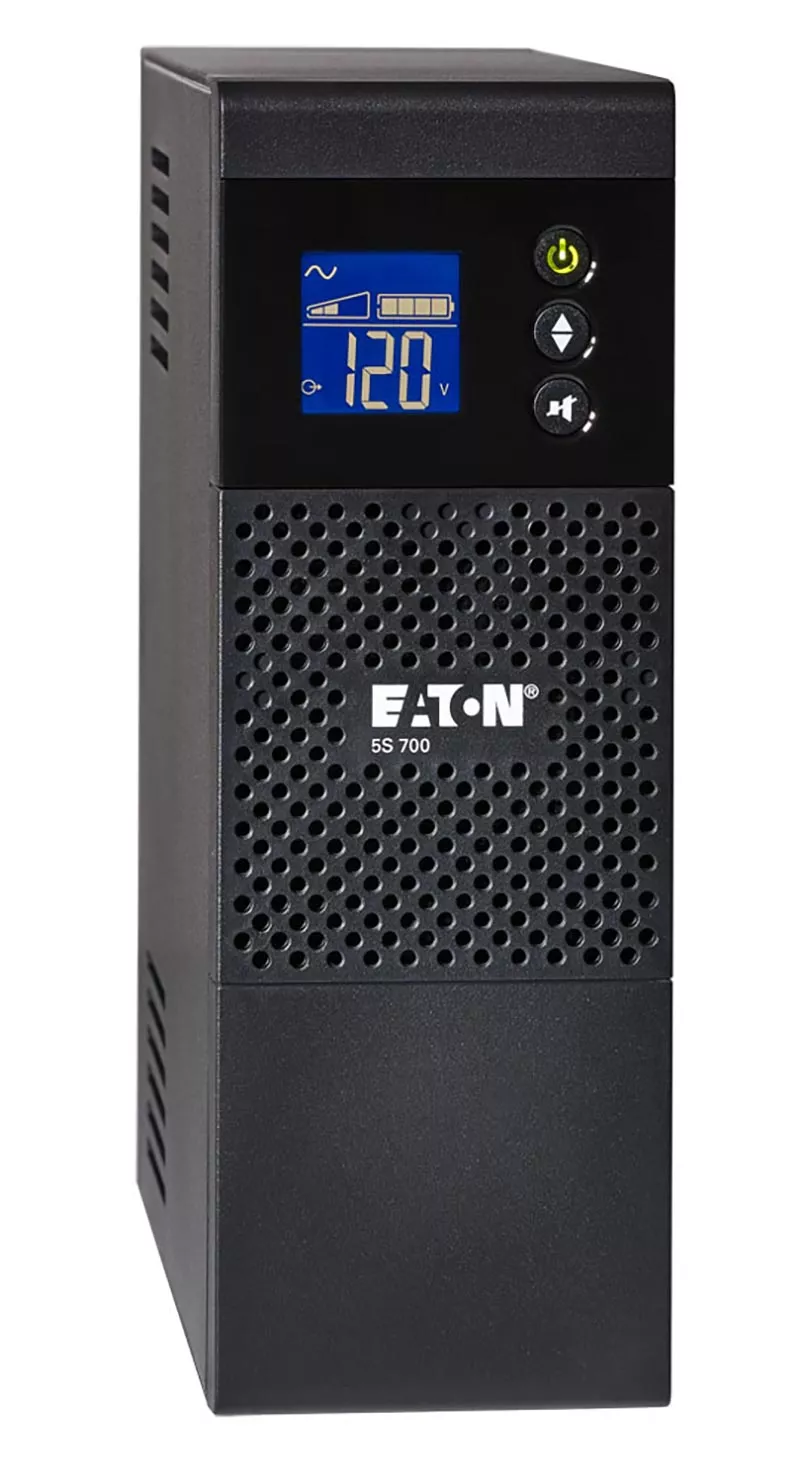

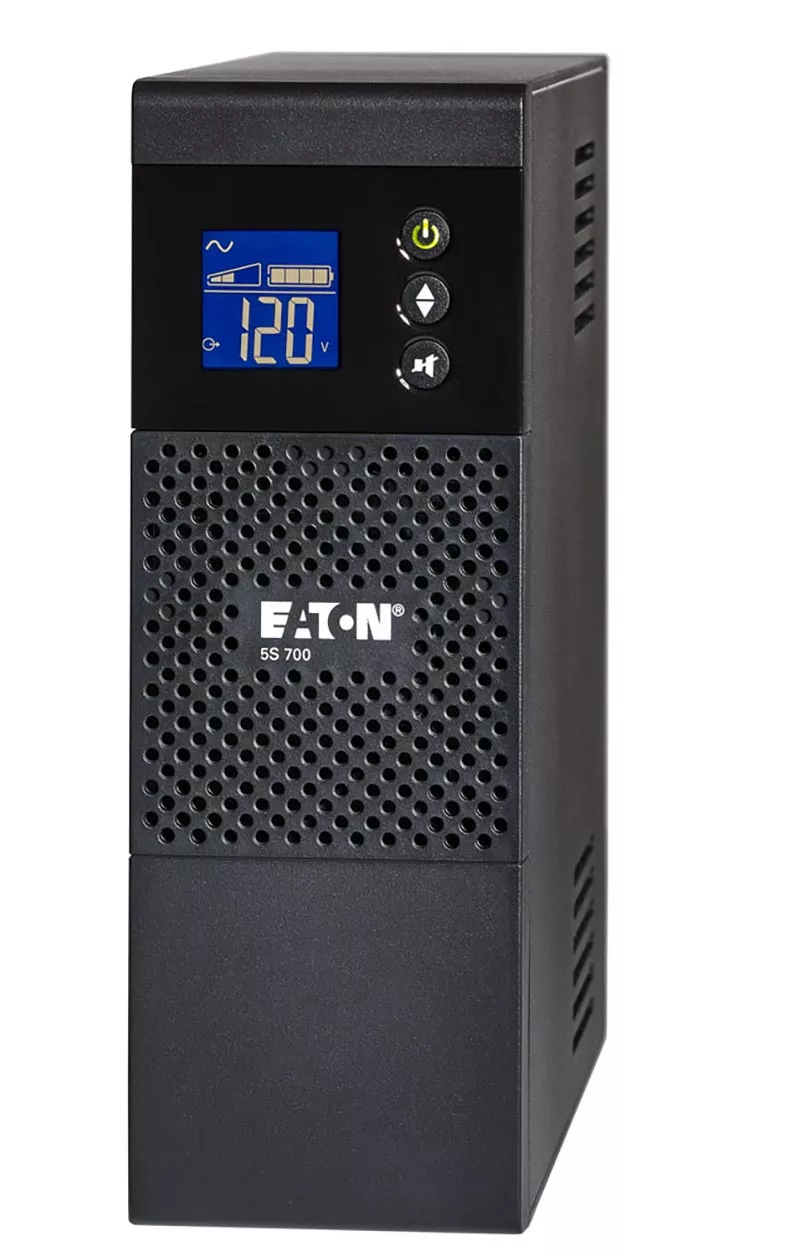

The small, compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The Eco-Control capability of this small UPS enables you save up to 30 percent in energy consumption. You can also enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion software. The 5S LCD Models display critical UPS information on battery time and outage tracking through a user-friendly LCD interface.
| Weight | 13.1 lbs |
|---|---|
| Dimensions | 10.2 × 3.4 × 9.8 in |
| Phase | |
| UPS Type | |
| Form Factor | |
| Output (VA) | |
| Watt Capacity | |
| Input Voltage | |
| Input Plug Type | |
| Output Voltage | |
| Outlet Types | |
| U-Rack Height | |
| Extended Runtime |
| GENERAL SPECIFICATIONS | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NAME | Eaton 5S UPS | Eaton 5S UPS | Eaton 5S UPS | Eaton 5S UPS | Eaton 5S UPS | Eaton 5S UPS | Eaton 5S UPS |
| CATALOG NUMBER | 5S550 | 5S700LCD | 5S700G | 5S700 | 5S1000LCD | 5S1500G | 5S1500LCD |
| PRODUCT LENGTH | 10.2 IN | 10.2 IN | 10.2 IN | 10.2 IN | 15 IN | 15 IN | 15 IN |
| PRODUCT HEIGHT | 9.8 IN | 9.8 IN | 9.8 IN | 9.8 IN | 9.8 IN | 9.8 IN | 9.8 IN |
| PRODUCT WIDTH | 3.4 IN | 3.4 IN | 3.4 IN | 3.4 IN | 3.4 IN | 3.4 IN | 3.4 IN |
| PRODUCT WEIGHT | 12.3 LB | 13.1 LB | 13.1 LB | 14.3 LB | 21.4 LB | 21.4 LB | 25.5 LB |
| WARRANTY | 3 year factory warranty with online product registration | 3 year factory warranty with online product registration | 3 year factory warranty with online product registration | 3 year factory warranty with online product registration | 3 year factory warranty with online product registration | 3 year factory warranty with online product registration | 3 year factory warranty with online product registration |
| COMPLIANCES | ISO 9001 | ISO 9001 | CE Marked, CCC Marked, FCC Part 15, C-Tick Compliant, CISPR 22 Class B | CE Marked | FCC Part 15 | FCC Part 15 | VCCI, FCC Class B |
| CERTIFICATIONS | UL 1561, cUL Listed, UL 1449 | UL 1561, cUL Listed, UL 1449 | EN 62040-2:2006 | IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A | UL 497A, CSA Std. C22.2 No. 107.1-01, ICES-003, VCCI, UL 1778 | UL 497A, NOM-019-SCFI, NOM, UL 178, CSA Certified, ICES-003, VCCI, CSA Std. C22.2, cULusListed | UL Listed, NOM, CSA Certified |
| BATTERY | |||||||
| RUNTIME GRAPH | View runtime graph | View runtime graph | View runtime graph | View runtime graph | View runtime graph | View runtime graph | View runtime graph |
| BATTERY MANAGEMENT | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| ELECTRICAL OUTPUT | |||||||
| BATTERY TYPE | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid |
| RECEPTACLE | (8) 5-15R | (8) 5-15R | (6) C13 | (8) 5-15R | (10) 5-15R | (8) C13 | (10) 5-15R |
| VA RATING | 550 VA | 700 VA | 700 VA | 700 VA | 1000 VA | 1500 VA | 1500 VA |
| WATTAGE | 330 W | 420 W | 420 W | 420 W | 600 W | 900 W | 900 W |
| OUTPUT NOMINAL VOLTAGE | 100/120/127V | 100/120/127V | 220/230/240V | 100/120/127V | 100/120/127V | 230V | 100/120/127V |
| TOPOLOGY | Line-interactive | Line-interactive | Line-interactive | Line-interactive | Line-interactive | Line-interactive | Line-interactive |
| ELECTRICAL INPUT | |||||||
| INPUT CONNECTION | 5-15P | 5-15P | C14 | 5-15P | 5-15P | C14 | 5-15P |
| INPUT NOMINAL VOLTAGE | 120V | 120V | 230V | 120V | 120V | 230V | 230V |
| INPUT CORD LENGTH | 6 ft | 6 ft | 6 ft | 6 ft | 6 ft | 6 ft | |
| INPUT VOLTAGE RANGE | 93-138 Vac | 93-138 Vac | 175-275 Vac | 93-138 Vac | 93-138 Vac | 175-275 Vac | 93-138 Vac |
| INPUT FREQUENCY RANGE | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) |
| COMMUNICATIONS | |||||||
| COMMUNICATION | USB HID port as standard, 6-ft USB cable included | USB HID port as standard, 6-ft USB cable included | USB HID port as standard, 6-ft USB cable included | USB HID port as standard, 6-ft USB cable included | USB HID port as standard, 6-ft USB cable included | USB HID port as standard, 6-ft USB cable included | USB HID port as standard, 6-ft USB cable included |
| SOFTWARE COMPATIBILITY | Eaton UPS Companion software | Eaton UPS Companion software | Eaton UPS Companion software | Eaton UPS Companion software | Eaton UPS Companion software | Eaton UPS Companion software | Eaton UPS Companion software |
| ENVIRONMENTAL | |||||||
| NOISE LEVEL | <25 dB at 1 meter | <25 dB at 1 meter | <25 dB at 1 meter | <25 dB at 1 meter | <25 dB at 1 meter | <25 dB at 1 meter | <25 dB at 1 meter |
| TEMPERATURE RANGE | 0° to 35°C (32° to 95°F) | 0° to 35°C (32° to 95°F) | 0° to 35°C (32° to 95°F) | 0° to 35°C (32° to 95°F) | 0° to 35°C (32° to 95°F) | 0° to 35°C (32° to 95°F) | 0° to 35°C (32° to 95°F) |
| RELATIVE HUMIDITY | 0-93% non-condensing | 0-93% non-condensing | 0-93% non-condensing | 0-93% non-condensing | 0-93% non-condensing | 0-93% non-condensing | 0-93% non-condensing |
| ALTITUDE | Up to 6,500 ft (2000m) without de-rating | Up to 6,500 ft (2000m) without de-rating | Up to 6,500 ft (2000m) without de-rating | Up to 6,500 ft (2000m) without de-rating | Up to 6,500 ft (2000m) without de-rating | Up to 6,500 ft (2000m) without de-rating | Up to 6,500 ft (2000m) without de-rating |
| ADDITIONAL SPECIFICATIONS | |||||||
| CONSTRUCTION TYPE | Free standing model | Free standing model | Free standing model | Free standing model | Free standing model | Free standing model | Free standing model |

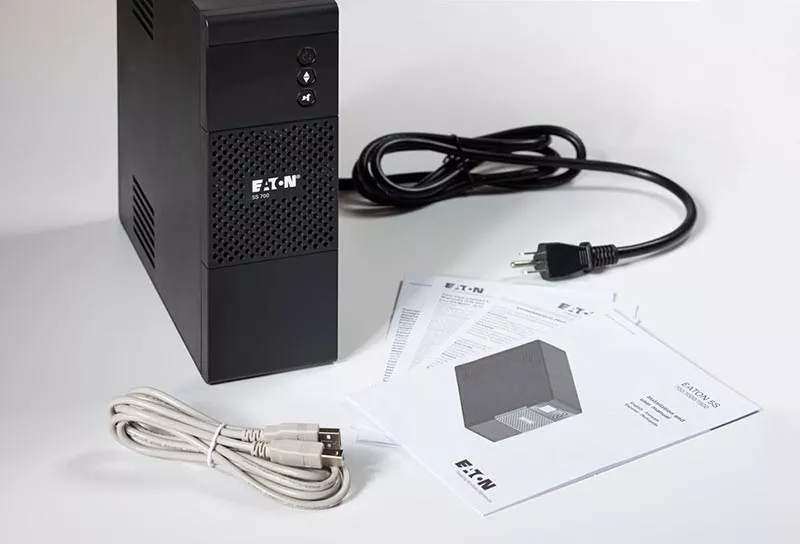

| PACKAGE CONTENTS | UPS, USB cable, User manual, Important safety instructions, Limited warranty | UPS, USB cable, User manual, Important safety instructions, Limited warranty | UPS, USB cable, User manual, Important safety instructions, Limited warranty | UPS, USB cable, User manual, Important safety instructions, Limited warranty | UPS, USB cable, User manual, Important safety instructions, Limited warranty | UPS, USB cable, User manual, Important safety instructions, Limited warranty | UPS, USB cable, User manual, Important safety instructions, Limited warranty |
| COLOR | Black | Black | Black | Black | Black | Black | Black |
| EFFICIENCY | 95 | 95 | 95 | 95 | 95 | 95 | 95 |
| SURGE PROTECTION | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| WARRANTY AND SUPPORT | |||||||
| STANDARD FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY, 2 years, parts, electronics and battery coverage, standard ground shipping, technical support | 2-YEAR FACTORY WARRANTY, 2 years, parts, electronics and battery coverage, standard ground shipping, technical support | 2-YEAR FACTORY WARRANTY, 2 years, parts, electronics and battery coverage, standard ground shipping, technical support | 2-YEAR FACTORY WARRANTY, 2 years, parts, electronics and battery coverage, standard ground shipping, technical support | 2-YEAR FACTORY WARRANTY, 2 years, parts, electronics and battery coverage, standard ground shipping, technical support | 2-YEAR FACTORY WARRANTY, 2 years, parts, electronics and battery coverage, standard ground shipping, technical support | 2-YEAR FACTORY WARRANTY, 2 years, parts, electronics and battery coverage, standard ground shipping, technical support |
| EXTENDED SERVICE PLANS | ADVANCED DEPOT EXCHANGE, 5-year depot repair: 5SW5Y-1500UC, expedited parts coverage for 5 years, parts, electronics and UPS batteries coverage, next business day shipping, technical support | ADVANCED DEPOT EXCHANGE, 5-year depot repair: 5SW5Y-1500UC, expedited parts coverage for 5 years, parts, electronics and UPS batteries coverage, next business day shipping, technical support | ADVANCED DEPOT EXCHANGE, 5-year depot repair: 5SW5Y-1500UC, expedited parts coverage for 5 years, parts, electronics and UPS batteries coverage, next business day shipping, technical support | ADVANCED DEPOT EXCHANGE, 5-year depot repair: 5SW5Y-1500UC, expedited parts coverage for 5 years, parts, electronics and UPS batteries coverage, next business day shipping, technical support | ADVANCED DEPOT EXCHANGE, 5-year depot repair: 5SW5Y-1500UC, expedited parts coverage for 5 years, parts, electronics and UPS batteries coverage, next business day shipping, technical support | ADVANCED DEPOT EXCHANGE, 5-YEAR DEPOT REPAIR: 5SW5Y-1500UC, Expedited parts coverage for 5 years, Parts, electronics and UPS batteries coverage, Next business day shipping, Technical support | ADVANCED DEPOT EXCHANGE, 5-YEAR DEPOT REPAIR: 5SW5Y-1500UC, Expedited parts coverage for 5 years, Parts, electronics and UPS batteries coverage, Next business day shipping, Technical support |
| ON-SITE 24X7, NEXT DAY RESPONSE, 2-year upgrade: WUN72XXX-2509UC, On-site expedited parts and labor coverage for the first 2 years, parts, electronics and UPS batteries coverage, Eaton on-site labor coverage, 24x7 coverage, next day response, next day shipping, technical support. | ON-SITE 24X7, NEXT DAY RESPONSE, 2-year upgrade: WUN72XXX-2509UC, On-site expedited parts and labor coverage for the first 2 years, parts, electronics and UPS batteries coverage, Eaton on-site labor coverage, 24x7 coverage, next day response, next day shipping, technical support. | ON-SITE 24X7, NEXT DAY RESPONSE, 2-year upgrade: WUN72XXX-2509UC, On-site expedited parts and labor coverage for the first 2 years, parts, electronics and UPS batteries coverage, Eaton on-site labor coverage, 24x7 coverage, next day response, next day shipping, technical support. | ON-SITE 24X7, NEXT DAY RESPONSE, 2-year upgrade: WUN72XXX-2509UC, On-site expedited parts and labor coverage for the first 2 years, parts, electronics and UPS batteries coverage, Eaton on-site labor coverage, 24x7 coverage, next day response, next day shipping, technical support. | ON-SITE 24X7, NEXT DAY RESPONSE, 2-year upgrade: WUN72XXX-2509UC, On-site expedited parts and labor coverage for the first 2 years, parts, electronics and UPS batteries coverage, Eaton on-site labor coverage, 24x7 coverage, next day response, next day shipping, technical support. | ON-SITE 24X7, NEXT DAY RESPONSE, 2-year upgrade: WUN72XXX-2509UC, On-site expedited parts and labor coverage for the first 2 years, parts, electronics and UPS batteries coverage, Eaton on-site labor coverage, 24x7 coverage, next day response, next day shipping, technical support. | ON-SITE 24X7, NEXT DAY RESPONSE, 2-year upgrade: WUN72XXX-2509UC, On-site expedited parts and labor coverage for the first 2 years, parts, electronics and UPS batteries coverage, Eaton on-site labor coverage, 24x7 coverage, next day response, next day shipping, technical support. | |
| 3 YEAR FLEX PLAN: FLN73XXX-2509UC, On-site parts and labor coverage for years 3 to 5, parts, electronics and UPS batteries coverage, 24x7 on-site labor coverage, next day response, next day shipping, technical support. | 3 YEAR FLEX PLAN: FLN73XXX-2509UC, On-site parts and labor coverage for years 3 to 5, parts, electronics and UPS batteries coverage, 24x7 on-site labor coverage, next day response, next day shipping, technical support. | 3 YEAR FLEX PLAN: FLN73XXX-2509UC, On-site parts and labor coverage for years 3 to 5, parts, electronics and UPS batteries coverage, 24x7 on-site labor coverage, next day response, next day shipping, technical support. | 3 YEAR FLEX PLAN: FLN73XXX-2509UC, On-site parts and labor coverage for years 3 to 5, parts, electronics and UPS batteries coverage, 24x7 on-site labor coverage, next day response, next day shipping, technical support. | 3 YEAR FLEX PLAN: FLN73XXX-2509UC, On-site parts and labor coverage for years 3 to 5, parts, electronics and UPS batteries coverage, 24x7 on-site labor coverage, next day response, next day shipping, technical support. | 3 YEAR FLEX PLAN: FLN73XXX-2509UC, On-site parts and labor coverage for years 3 to 5, parts, electronics and UPS batteries coverage, 24x7 on-site labor coverage, next day response, next day shipping, technical support. | 3 YEAR FLEX PLAN: FLN73XXX-2509UC, On-site parts and labor coverage for years 3 to 5, parts, electronics and UPS batteries coverage, 24x7 on-site labor coverage, next day response, next day shipping, technical support. |
5S Technical Specifications (78 KiB) 5S UPS Brochure (0.5 MiB) 5S Users Guide (120700-1000-1500-lcd) (4.9 MiB) 5S Users Guide (120v-550-700) (3.0 MiB) 5S Users Guide (North America) (7.5 MiB) 5S Users Guide (Safety Manual) (3.1 MiB)
