Description
Set up and customize your own Eaton 9PXM Uninterruptible Power Supply system, starting with an 8-slot or 12-slot chassis
From: $4,532.00

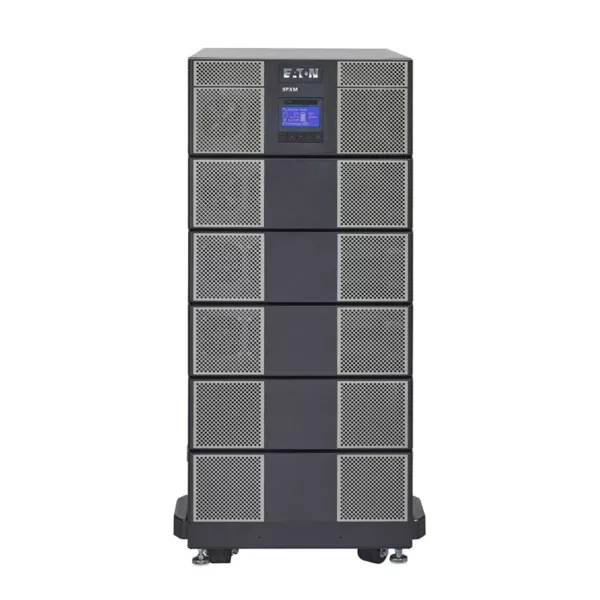

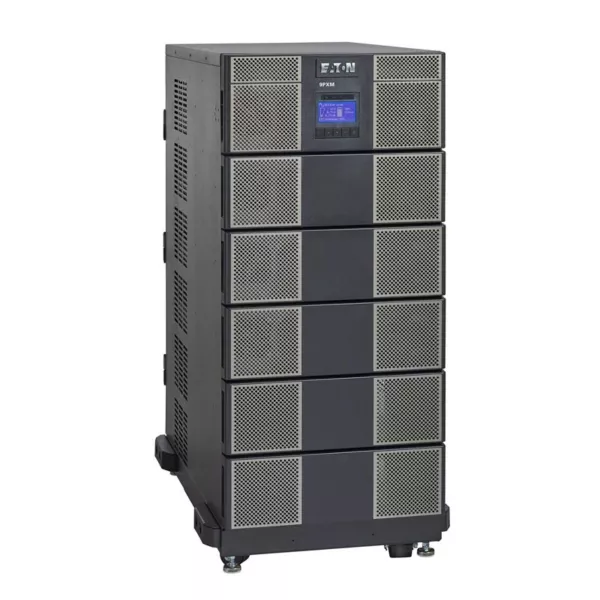

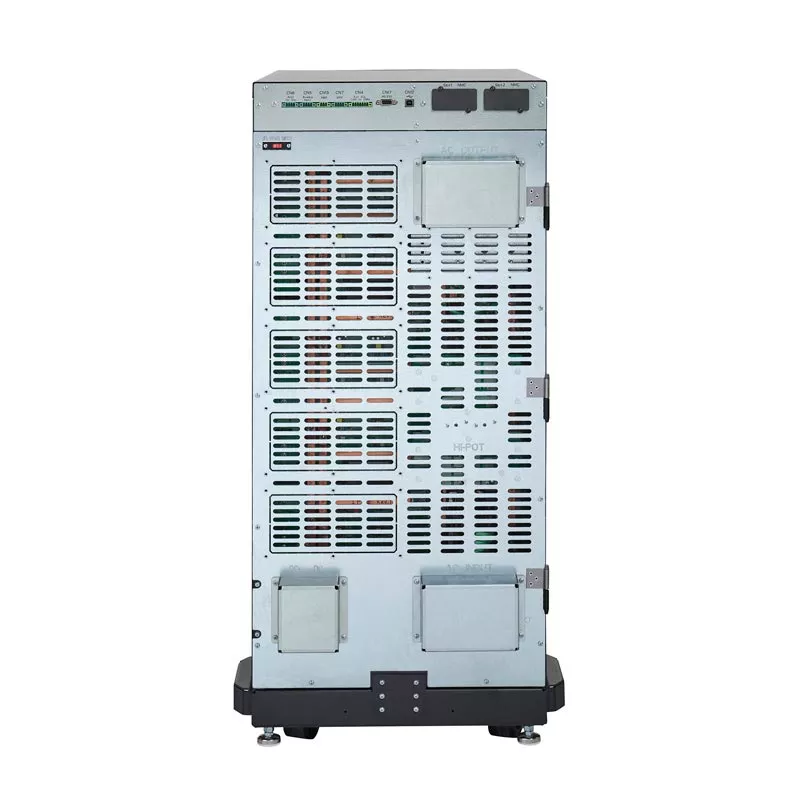

Eaton 9PXM UPS 12-slot Chassis, 4-20 kVA, Hardwired input, User-Chosen Output, Rack/Tower, 21U
Set up and customize your own Eaton 9PXM Uninterruptible Power Supply system, starting with an 8-slot or 12-slot chassis
Weight | 170 lbs |
---|---|
Dimensions | 34.5 × 17.5 × 36.5 in |
9PXM TECHNICAL SPECIFICATIONS | |
---|---|
All Models | |
BATTERY MANAGEMENT | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
OUTPUT WAVEFORM | True sine wave |
AUTO SHUTDOWN FUNCTION | Yes |
OUTPUT POWER FACTOR | 0.9 |
FORM FACTOR | Rack/tower |
FEED TYPE | 1 |
SOFTWARE COMPATIBILITY | Intelligent Power Software Suite |
USER INTERFACE | 5-Button Graphical User Interface |
BATTERIES REPLACEMENT | Hot-swappable internal batteries and extended battery modules (EBMs) |
BATTERY TYPE | Sealed, lead-acid |
NUMBER OF OUTPUTS HARDWIRED | 1 |
VOLTAGE | 120/208V |
HOT SWAP POWER | Yes |
TEMPERATURE RANGE | 0° to 40°C (32° to 104°F) |
RELATIVE HUMIDITY | 5-95% non-condensing |
CONSTRUCTION TYPE | Free standing model |
COLOR | Black/silver |
EXTENDED BATTERY CAPABILITY | Yes |
TOPOLOGY | Online/Double-conversion |
OUTPUT FREQUENCY | 60 Hz |
MOUNTING | Vertical |
TYPE | UPS |
OUTPUT NOMINAL VOLTAGE | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
INPUT NOMINAL VOLTAGE | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
INPUT POWER FACTOR | >0.99 typical |
EXPANSION SLOTS | (2) Mini-Slot (MS) expansion port. Optional connectivity cards may be ordered separately. - Web/SNMP card part number: NETWORK-MS - Modbus card part number: MODBUS-MS - Relay card part number: RELAY-MS |
INPUT FREQUENCY RANGE | 60 Hz: 55–65 Hz |
INTERNAL BYPASS | Yes |
STANDARD FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY -2 years -Parts, electronics, and batteries coverage -Standard ground shipping -Technical support |
EXTENDED SERVICE PLANS | ADVANCED DEPOT EXCHANGE -5-year depot repair: 9SW5Y-11000UC -Expedited parts coverage for 5 years -Parts, electronics and UPS batteries coverage -Next business day shipping -Technical support ON-SITE 24X7, NEXT DAY RESPONSE 2 YEAR UPGRADE: WUN72XXX-11000UC -On-site expedited parts and labor coverage for first 2 years -Parts, electronics and UPS batteries coverage -Eaton on-site labor coverage -24x7 coverage, next day response -Next day shipping -Technical support 3 YEAR FLEX PLAN: FLN73XXX-11000UC -On-site parts and labor coverage for years 3 to 5 -Parts, electronics and UPS batteries coverage -24x7 on-site labor coverage, next day respsonse -Next day shipping -Technical support |
