Call for Price: 855-665-3829

Email For Price

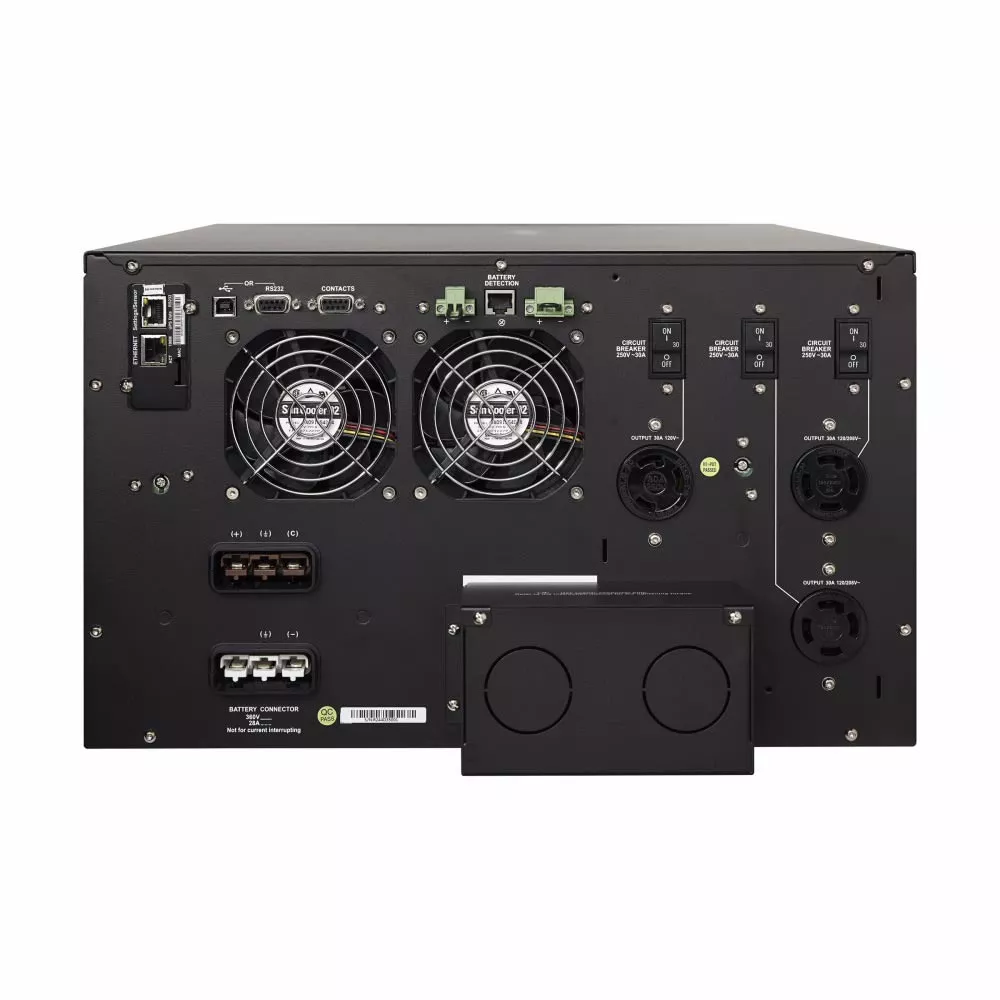

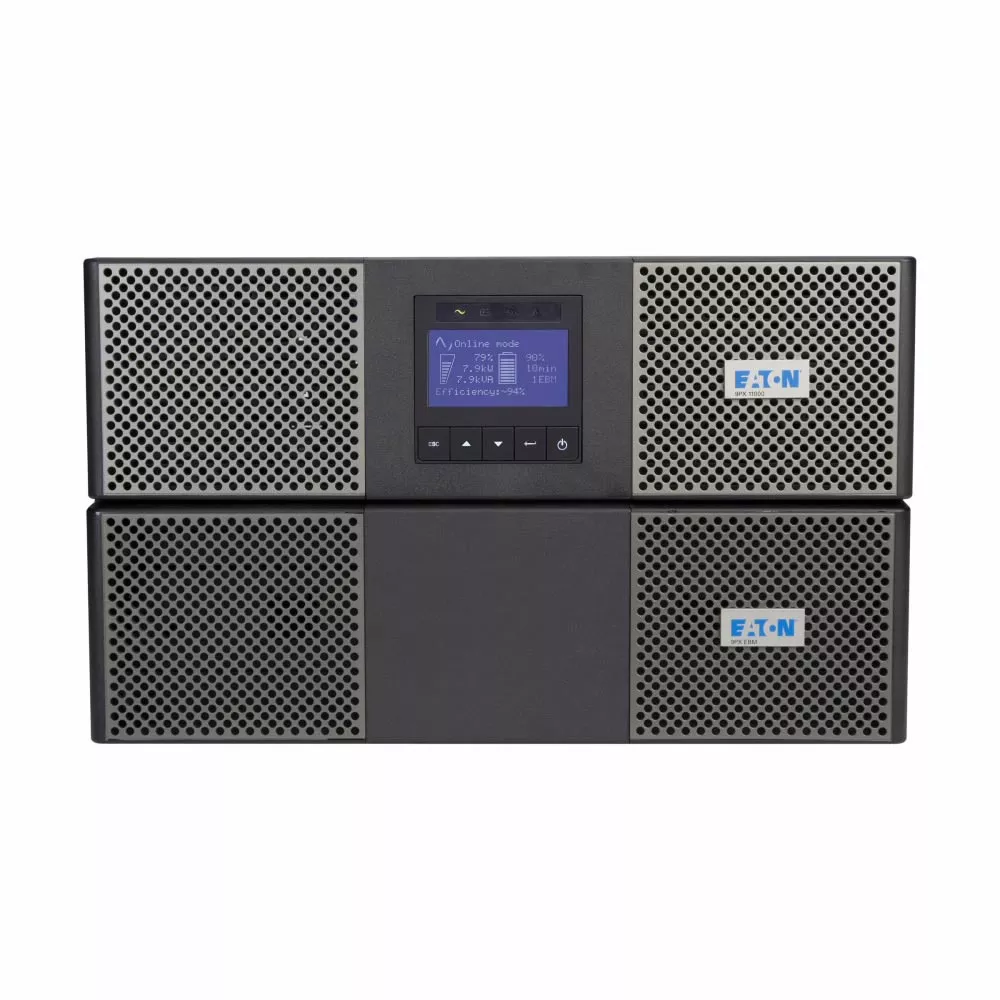

Eaton 9PX8KSP UPS, 6U, Split-Phase, 8 kVA, 7.2 kW, Online Double-Conversion, Hardwired input, Outputs: (1) L6-30R, (2) L14-30R, Hardwired, 120/208V

Get A Best Price Quote
SKU: 9PX8KSP Categories: , ,

Description

Delivering premium, double-conversion backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. An ENERGY STAR qualified UPS, the 9PX’s graphical LCD interface and robust target power management software makes managing your UPS easy – even in virtualized environments.

“SP” (Split-Phase) models offer both 120V and 208V output without a transformer, saving valuable rack space, reducing weight and cost.

Get extra runtime with extended battery modules and prolong battery life by 50% with Eaton’s ABM Technology.

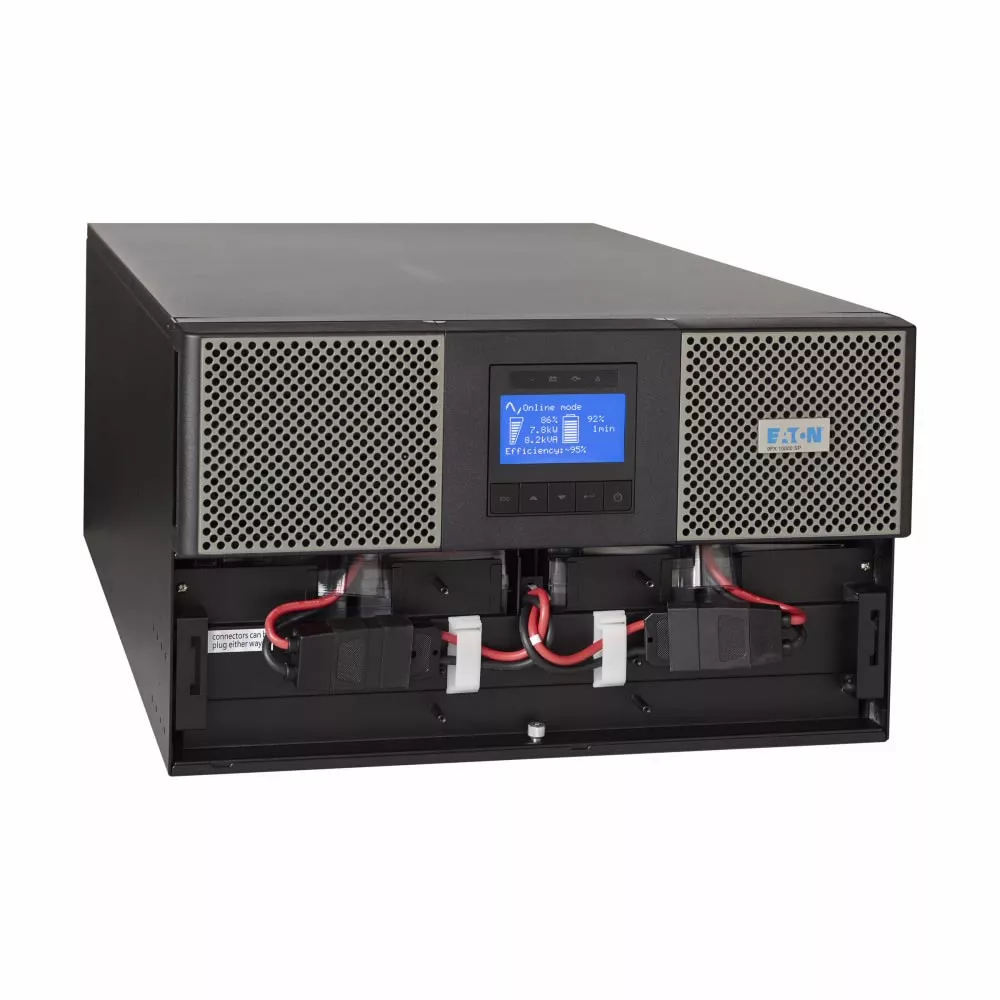

Hot-swappable batteries, internal bypass and optional maintenance bypass options.

Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines.

4-post rail kit included (2 post kit optional for 9PX6KSP only)

(NOTE: 9PX SP models derated at 100/200, 120/208, 110/220V)

Additional information

Weight 225 lbs
Dimensions 32 × 17.3 × 10.3 in
Phase

UPS Type

Form Factor

Output (VA)

Watt Capacity

Input Voltage

, , , , , ,

Input Plug Type

Output Voltage

, , , , , , , , ,

Outlet Types

, ,

U-Rack Height

Extended Runtime

Specifications

Scroll/swipe table left and right to view more:

9PX Split Phase 6, 8, 10 kVA Specifications
GENERAL SPECIFICATIONS
PRODUCT NAMEEaton 9PX UPSEaton 9PX UPSEaton 9PX UPS
CATALOG NUMBER9PX6KSP9PX8KSP9PX10KSP
PRODUCT LENGTH25.6 IN27.6 IN27.6 IN
PRODUCT HEIGHT6.8 IN10.3 IN10.3 IN
PRODUCT WIDTH17.3 IN17.3 IN17.3 IN
PRODUCT WEIGHT157.3 LB225 LB225 LB
WARRANTY2 year limited factory2 year limited factory2 year limited factory
COMPLIANCESCISPR22 Class A / FCC part 15 Class A
CE Marked		RoHS Compliant
CE Marked
CISPR22 Class A / FCC part 15 Class A
FCC Part 15		CE Marked
FCC Part 15
CISPR22 Class A / FCC part 15 Class A
CERTIFICATIONScULus Listed
NOM
ENERGY STAR certified
IEC 62040-2:2006 Cat C2		NOM
ANSI/IEEE Std C62.41
cULus Listed
ENERGY STAR certified		IEC 62040-2:2006 Cat C2
NOM
cULus Listed
ENERGY STAR certified
BATTERY
RUNTIME GRAPHView Runtime GraphView Runtime GraphView Runtime Graph
BATTERY MANAGEMENTABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
BATTERIES REPLACEMENTHot-swappable internal batteries and extended battery modules (EBMs)Hot-swappable internal batteries and extended battery modules (EBMs)Hot-swappable internal batteries and extended battery modules (EBMs)
BATTERY TYPESealed, lead-acidSealed, lead-acidSealed, lead-acid
EXTENDED BATTERY CAPABILITYAdd up to 4 extended battery modules (EBM). Part number 9PXEBM240SPAdd up to 4 extended battery modules (EBM). Part number 9PXEBM360SPAdd up to 4 extended battery modules (EBM). Part number 9PXEBM360SP
ELECTRICAL OUTPUT
RECEPTACLE(6) 5-20R, (1) L6-30R, (1) L14-30R, Hardwired(1) L6-30R, (2) L14-30R, Hardwired(1) L6-30R, (2) L14-30R, Hardwired
OUTPUT POWER FACTOR0.820.90.9
OUTPUT WAVEFORMTrue sine waveTrue sine waveTrue sine wave
VOLTAGE120/208V120/208V120/208V
VA RATING5500 VA8 kVA10 kVA
WATTAGE4900 W7.2 kW9 kW
OUTPUT NOMINAL VOLTAGE120/208V default (120/240, 100/200, 110/220, 115/230, 127/220V)120/208V default (120/240, 100/200, 110/220, 115/230, 127/220V)120/208V default (120/240, 100/200, 110/220, 115/230, 127/220V)
OUTPUT VOLTAGE RANGE±1% steady-state±1% steady-state±1% steady-state
OUTPUT FREQUENCY50/60 Hz50/60 Hz50/60 Hz
TOPOLOGYOnline/Double-conversionOnline/Double-conversionOnline/Double-conversion
ELECTRICAL INPUT
INPUT CONNECTIONL14-30PHardwiredHardwired
INPUT CORD LENGTH6 ft--
INPUT NOMINAL VOLTAGE120/208V default (120/240, 100/200, 110/220, 115/230, 127/220V)120/208V default (120/240, 100/200, 110/220, 115/230, 127/220V)120/208V default (120/240, 100/200, 110/220, 115/230, 127/220V)
INPUT FREQUENCY RANGE60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz
INPUT POWER FACTOR>0.99 typical>0.99 typical>0.99 typical
COMMUNICATIONS
COMMUNICATIONWeb/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slotWeb/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slotWeb/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot
EXPANSION SLOTS(1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included(1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included(1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included
ETHERNET INTERFACEYesYesYes
SNMPYesYesYes
INCLUDES NETWORK CARDYesYesYes
SOFTWARE COMPATIBILITYIntelligent Power Software SuiteIntelligent Power Software SuiteIntelligent Power Software Suite
USER INTERFACEGraphical display, 5-button programmable menuGraphical display, 5-button programmable menuGraphical display, 5-button programmable menu
ENVIRONMENTAL
ALTITUDE<3000m for nominal power, -5°C temp derating every 500m<3000m for nominal power, -5°C temp derating every 500m<3000m for nominal power, -5°C temp derating every 500m
BTU RATINGOnline: 1275, Battery: 1535Online: 1848, Battery: 1848Online: 2310, Battery: 2310
NOISE LEVEL<55 dB at 1 meter<55 dB at 1 meter<55 dB at 1 meter
RELATIVE HUMIDITY0-95% non-condensing0-95% non-condensing0-95% non-condensing
TEMPERATURE RANGE0° to 40°C (32° to 104°F)0° to 40°C (32° to 104°F)0° to 40°C (32° to 104°F)
ADDITIONAL SPECIFICATIONS
FORM FACTORRack/towerRack/towerRack/tower
RACK SIZE6U6U6U
COLORBlack/silverBlack/silverBlack/silver
RACK MOUNTING KITYesYesYes
PACKAGE CONTENTS9PX6KSP UPS9PX8KSP UPS9PX10KSP UPS
4-post rail kit4-post rail kit4-post rail kit
RS-232 serial cableRS-232 serial cableRS-232 serial cable
USB cableUSB cableUSB cable
Intelligent Power Software Suite CDIntelligent Power Software Suite CDIntelligent Power Software Suite CD
EFFICIENCY92.99393
INTERNAL BYPASSYesYesYes
WARRANTY AND SUPPORT
STANDARD FACTORY WARRANTY2-YEAR FACTORY WARRANTY2-YEAR FACTORY WARRANTY2-YEAR FACTORY WARRANTY
-2 years-2 years-2 years
-Parts, electronics, and batteries coverage-Parts, electronics, and batteries coverage-Parts, electronics, and batteries coverage
-Standard ground shipping-Standard ground shipping-Standard ground shipping
-Technical support-Technical support-Technical support
EXTENDED SERVICE PLANSADVANCED DEPOT EXCHANGE
-5-year depot repair: 9SW5Y-6000UC
-Expedited parts coverage for 5 years
-Parts, electronics and UPS batteries coverage
-Next business day shipping
-Technical support

ON-SITE 24X7, NEXT DAY RESPONSE
2 YEAR UPGRADE: WUN72XXX-6009UC
-On-site expedited parts and labor coverage for first 2 years
-Parts, electronics and UPS batteries coverage
-Eaton on-site labor coverage
-24x7 coverage, next day response
-Next day shipping
-Technical support

3 YEAR FLEX PLAN: FLN73XXX-6009UC
-On-site parts and labor coverage for years 3 to 5
-Parts, electronics and UPS batteries coverage
-24x7 on-site labor coverage, next day repsonse
-Next day shipping
-Technical support		ADVANCED DEPOT EXCHANGE
-5-year depot repair: 9SW5Y-6000UC
-Expedited parts coverage for 5 years
-Parts, electronics and UPS batteries coverage
-Next business day shipping
-Technical support

ON-SITE 24X7, NEXT DAY RESPONSE
2 YEAR UPGRADE: WUN72XXX-6009UC
-On-site expedited parts and labor coverage for first 2 years
-Parts, electronics and UPS batteries coverage
-Eaton on-site labor coverage
-24x7 coverage, next day response
-Next day shipping
-Technical support

3 YEAR FLEX PLAN: FLN73XXX-6009UC
-On-site parts and labor coverage for years 3 to 5
-Parts, electronics and UPS batteries coverage
-24x7 on-site labor coverage, next day repsonse
-Next day shipping
-Technical support		ADVANCED DEPOT EXCHANGE
-5-year depot repair: 9SW5Y-6000UC
-Expedited parts coverage for 5 years
-Parts, electronics and UPS batteries coverage
-Next business day shipping
-Technical support

ON-SITE 24X7, NEXT DAY RESPONSE
2 YEAR UPGRADE: WUN72XXX-6009UC
-On-site expedited parts and labor coverage for first 2 years
-Parts, electronics and UPS batteries coverage
-Eaton on-site labor coverage
-24x7 coverage, next day response
-Next day shipping
-Technical support

3 YEAR FLEX PLAN: FLN73XXX-6009UC
-On-site parts and labor coverage for years 3 to 5
-Parts, electronics and UPS batteries coverage
-24x7 on-site labor coverage, next day repsonse
-Next day shipping
-Technical support

Documentation

Warranty Documents

Warranty (9 Series and Ferrups) Load Protection Guarantee Eaton Extended Warranty Certificate
