| GENERAL SPECIFICATIONS | 208/230V Output, 50/60Hz Bundles | | | | 120/240V Output, 50/60Hz Bundles | | | |
| PRODUCT NAME | Eaton 9PX UPS | Eaton 9PX UPS | Eaton 9PX UPS | Eaton 9PX UPS | Eaton 9PX UPS | Eaton 9PX UPS | Eaton 9PX UPS | Eaton 9PX UPS |
| DESCRIPTION | 8 kVA 9PX UPS power module and 11 kVA EBM | 8 kVA 9PX UPS power module, 11 kVA EBM and 11 kVA MBP | 11 kVA 9PX UPS power module and 11 kVA EBM | 11 kVA 9PX UPS power module, 11 kVA EBM and 11 kVA MBP | 8 kVA 9PX UPS power module, 11 kVA EBM, 11 kVA MBP and 5 kVA Transformer | 11 kVA 9PX UPS power module, 11 kVA EBM, 11 kVA MBP and 5 kVA Transformer | 11 kVA 9PX UPS power module, 11 kVA EBM and 10 kW Transformer | 11 kVA 9PX UPS power module, 11 kVA EBM, 11kVA MBP and 10 kW Transformer |
| CATALOG NUMBER | 9PX8KHW | 9PX8K | 9PX11KHW | 9PX11K | 9PX8KTF5 | 9PX11KTF5 | 9PX11KTF11 | 9PX11KTF11M |
| PRODUCT LENGTH | 27.6 IN | 28.5 IN | 27.6 IN | 28.5 IN | 17.3 IN | 17.3 IN | 27.6 IN | 30 IN |
| PRODUCT HEIGHT | 10.2 IN | 10.2 IN | 15.3 IN | 10.2 IN | 15.3 IN | 15.3 IN | 15.3 IN | 15.3 IN |
| PRODUCT WIDTH | 17.3 IN | 17.3 IN | 17.3 IN | 17.3 IN | 30 IN | 30 IN | 17.3 IN | 17.3 IN |
| PRODUCT WEIGHT | 190 LB | 205 LB | 232 LB | 205 LB | 300 LB | 300 LB | 377 LB | 392 LB |
| WARRANTY | 2 year limited factory | 2 year limited factory | 2 year limited factory | 2 year limited factory | 2 year limited factory | 2 year limited factory | 2 year limited factory | 2 year limited factory |
| COMPLIANCES | CE Marked | FCC Part 15 | CE Marked | CE Marked | FCC Part 15 | CE Marked | FCC Part 15 | CISPR22 Class A / FCC part 15 Class A |
| FCC Part 15 | CE Marked | FCC Part 15 | FCC Part 15 | CE Marked | FCC Part 15 | CE Marked | FCC Part 15 |
| CISPR22 Class A / FCC part 15 Class A | CISPR22 Class A / FCC part 15 Class A | CISPR22 Class A / FCC part 15 Class A | CISPR22 Class A / FCC part 15 Class A | CISPR22 Class A / FCC part 15 Class A | CISPR22 Class A / FCC part 15 Class A | CISPR22 Class A / FCC part 15 Class A | |
| | | | | | | | |
| CERTIFICATIONS | cULus Listed | cULus Listed | IEC 62040-2:2006 Cat C2 | cULus Listed | NOM | cULus Listed | cULus Listed | NOM |
| IEC 62040-2:2006 Cat C2 | IEC 62040-2:2006 Cat C2 | NOM | NOM | cULus Listed | NOM | NOM | ENERGY STAR certified |
| NOM | NOM | cULus Listed | IEC 62040-2:2006 Cat C2 | IEC 62040-2:2006 Cat C2 | IEC 62040-2:2006 Cat C2 | IEC 62040-2:2006 Cat C2 | |
| ENERGY STAR certified | ENERGY STAR certified | ENERGY STAR certified | ENERGY STAR certified | ENERGY STAR certified | ENERGY STAR certified | ENERGY STAR certified | |
| | | | | | | | |
| CATALOG NOTES | Add up to 5 extended battery modules (EBM) with UPS; add up to 12 EBMs with SC240RT supercharger module | Add up to 5 extended battery modules (EBM) with UPS; add up to 12 EBMs with SC240RT supercharger module | Add up to 5 extended battery modules (EBM) with UPS; add up to 12 EBMs with SC240RT supercharger module | Add up to 5 extended battery modules (EBM) with UPS; add up to 12 EBMs with SC240RT supercharger module | Add up to 5 extended battery modules (EBM) with UPS; add up to 12 EBMs with SC240RT supercharger module | Add up to 5 extended battery modules (EBM) with UPS; add up to 12 EBMs with SC240RT supercharger module | Add up to 5 extended battery modules (EBM) with UPS; add up to 12 EBMs with SC240RT supercharger module | Add up to 5 extended battery modules (EBM) with UPS; add up to 12 EBMs with SC240RT supercharger module |
| | | | | | | | |
| BATTERY | | | | | | | | |
| RUNTIME GRAPH | View runtime graph | View runtime graph | View runtime graph | View runtime graph | View runtime graph | View runtime graph | View runtime graph | View runtime graph |
| BATTERY MANAGEMENT | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) | ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement) |
| BATTERIES REPLACEMENT | Hot-swappable internal batteries and extended battery modules (EBMs) | Hot-swappable internal batteries and extended battery modules (EBMs) | Hot-swappable internal batteries and extended battery modules (EBMs) | Hot-swappable internal batteries and extended battery modules (EBMs) | Hot-swappable internal batteries and extended battery modules (EBMs) | Hot-swappable internal batteries and extended battery modules (EBMs) | Hot-swappable internal batteries and extended battery modules (EBMs) | Hot-swappable internal batteries and extended battery modules (EBMs) |
| BATTERY TYPE | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid |
| EXTENDED BATTERY CAPABILITY | Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT. | Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT. | Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT. | Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT. | Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT. | Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT. | Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT. | Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT. |
| ELECTRICAL OUTPUT | | | | | | | | |
| RECEPTACLE | Hardwired | (3) L6-30R, Hardwired | Hardwired | (3) L6-30R, Hardwired | (18) 5-20R, (2) L6-30R | (18) 5-20R, (2) L6-30R | (8) 5-20R, (2) L14-30R, Hardwired | (8) 5-20R, (3) L6-30R, (2) L14-30R, Hardwired |
| OUTPUT POWER FACTOR | 0.9 | 0.9 | 0.91 | 0.91 | 0.9 | 0.91 | 0.91 | 0.91 |
| OUTPUT WAVEFORM | True sine wave | True sine wave | True sine wave | True sine wave | True sine wave | True sine wave | True sine wave | True sine wave |
| VOLTAGE | 208V | 208V | 208V | 208V | 208V | 208V | 208V | 208V |
| VA RATING | 8 kVA | 8 kVA | 11 kVA | 11 kVA | 8 kVA | 11 kVA | 11 kVA | 11 kVA |
| WATTAGE | 7.2 kW | 7.2 kW | 10 kW | 10 kW | 7.2 kW | 10 kW | 10 kW | 10 kW |
| OUTPUT NOMINAL VOLTAGE | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) |
| OUTPUT VOLTAGE RANGE | ±1% steady-state | ±1% steady-state | ±1% steady-state | ±1% steady-state | ±1% steady-state | ±1% steady-state | ±1% steady-state | ±1% steady-state |
| OUTPUT FREQUENCY | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| TOPOLOGY | Online/Double-conversion | Online/Double-conversion | Online/Double-conversion | Online/Double-conversion | Online/Double-conversion | Online/Double-conversion | Online/Double-conversion | Online/Double-conversion |
| ELECTRICAL INPUT | | | | | | | | |
| INPUT CONNECTION | Hardwired | Hardwired | Hardwired | Hardwired | Hardwired | Hardwired | Hardwired | Hardwired |
| INPUT NOMINAL VOLTAGE | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) | 208V default (200/208/220/230/240/250V) |
| INPUT FREQUENCY RANGE | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz | 60 Hz: 50-70 Hz, 50 Hz: 40-60 Hz |
| INPUT POWER FACTOR | >0.99 typical | >0.99 typical | >0.99 typical | >0.99 typical | >0.99 typical | >0.99 typical | >0.99 typical | >0.99 typical |
| | | | | | | | |
| COMMUNICATIONS | | | | | | | | |
| COMMUNICATION | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot | Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot |
| EXPANSION SLOTS | (1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included | (1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included | (1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included | (1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included | (1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included | (1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included | (1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included | (1) Mini-Slot (MS) expansion port with Network-MS Web/SNMP card included |
| ETHERNET INTERFACE | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| SNMP | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| INCLUDES NETWORK CARD | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| SOFTWARE COMPATIBILITY | Intelligent Power Software Suite | Intelligent Power Software Suite | Intelligent Power Software Suite | Intelligent Power Software Suite | Intelligent Power Software Suite | Intelligent Power Software Suite | Intelligent Power Software Suite | Intelligent Power Software Suite |
| USER INTERFACE | Graphical display, 5-button programmable menu | Graphical display, 5-button programmable menu | Graphical display, 5-button programmable menu | Graphical display, 5-button programmable menu | Graphical display, 5-button programmable menu | Graphical display, 5-button programmable menu | Graphical display, 5-button programmable menu | Graphical display, 5-button programmable menu |
| | | | | | | | |
| ENVIRONMENTAL | | | | | | | | |
| ALTITUDE | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) | <1000m for nominal power, 10% power degrading every 1000m (up to 3000m) |
| BTU RATING | Online: 1760, Battery: 2375 | Online: 1760, Battery: 2375 | Online: 1920, Battery: 2900 | Online: 1920, Battery: 2900 | Online: 1814, Battery: 2448 | Online: 1920, Battery: 2900 | Online: 1920, Battery: 2900 | Online: 1920, Battery: 2900 |
| NOISE LEVEL | <45 dB at 1 meter | <45 dB at 1 meter | <45 dB at 1 meter | <45 dB at 1 meter | <45 dB at 1 meter | <45 dB at 1 meter | <45 dB at 1 meter | <45 dB at 1 meter |
| RELATIVE HUMIDITY | 0-95% non-condensing | 0-95% non-condensing | 0-95% non-condensing | 0-95% non-condensing | 0-95% non-condensing | 0-95% non-condensing | 0-95% non-condensing | 0-95% non-condensing |
| TEMPERATURE RANGE | 0° to 40°C (32° to 104°F) | 0° to 40°C (32° to 104°F) | 0° to 40°C (32° to 104°F) | 0° to 40°C (32° to 104°F) | 0° to 40°C (32° to 104°F) | 0° to 40°C (32° to 104°F) | 0° to 40°C (32° to 104°F) | 0° to 40°C (32° to 104°F) |
| | | | | | | | |
| ADDITIONAL SPECIFICATIONS | | | | | | | | |
| FORM FACTOR | Rack/tower | Rack/tower | Rack/tower | Rack/tower | Rack/tower | Rack/tower | Rack/tower | Rack/tower |
| RACK SIZE | 6U | 6U | 6U | 6U | 9U | 9U | 9U | 9U |
| COLOR | Black/silver | Black/silver | Black/silver | Black/silver | Black/silver | Black/silver | Black/silver | Black/silver |
| RACK MOUNTING KIT | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| PACKAGE CONTENTS | 9PX8KPM 8 kVA 3U UPS power module | 9PX8KPM 8 kVA 3U UPS power module | 9PX11KPM 11 kVA 3U UPS power module | 9PX11KPM 11 kVA 3U UPS power module | 9PX8KPM 8 kVA 3U UPS power module | 9PX11KPM 11 kVA 3U UPS power module | 9PX11KPM 11 kVA 3U UPS power module | 9PX11KPM 11 kVA 3U UPS power module |
| 9PXEBM240RT 3U extended battery module | 9PXEBM240RT 3U extended battery module | 9PXEBM240RT 3U extended battery module | 9PXEBM240RT 3U extended battery module | 9PXEBM240RT 3U extended battery module | 9PXEBM240RT 3U extended battery module | 9PXEBM240RT 3U extended battery module | 9PXEBM240RT 3U extended battery module |
| Network-MS Web/SNMP card | MBP11K208 rear-mount maintenance bypass | Network-MS Web/SNMP card | MBP11K208 rear-mount maintenance bypass | MBP11K208 rear-mount maintenance bypass | MBP11K208 rear-mount maintenance bypass | 9PXTFMR11 11K 120V Stepdown Transformer | 9PXTFMR11 11K 120V Stepdown Transformer |
| 4-post rail kit | Network-MS Web/SNMP card | 4-post rail kit | Network-MS Web/SNMP card | 9PXTFMR5 120V Stepdown Transformer | 9PXTFMR5 5K 120V Stepdown Transformer | Network-MS Web/SNMP card | MBP11K208 Maintenance Bypass |
| User manual | 4-post rail kit | User manual | 4-post rail kit | Network-MS Web/SNMP card | Network-MS Web/SNMP card | 4-post rail kit | Network-MS Web/SNMP card |
| Quick start guide | User manual | Quick start guide | User manual | 4-post rail kit | 4-post rail kit | User manual | 4-post rail kit |
| Tower pedestals | Quick start guide | Tower pedestals | Quick start guide | User manual | User manual | Quick start guide | User manual |
| Intelligent Power Software Suite CD | Tower pedestals | Intelligent Power Software Suite CD | Tower pedestals | Quick start guide | Quick start guide | Tower pedestals | Quick start guide |
| RS-232 serial cable | Intelligent Power Software Suite CD | RS-232 serial cable | Intelligent Power Software Suite CD | Tower pedestals | Tower pedestals | Intelligent Power Software Suite CD | Tower pedestals |
| USB cable | RS-232 serial cable | USB cable | RS-232 serial cable | Intelligent Power Software Suite CD | Intelligent Power Software Suite CD | RS-232 serial cable | Intelligent Power Software Suite CD |
| Cable gland for hardwire connection | USB cable | Cable gland for hardwire connection | USB cable | RS-232 serial cable | RS-232 serial cable | USB cable | RS-232 serial cable |
| Phillips head screw driver | Cable gland for hardwire connection | Phillips head screw driver | Cable gland for hardwire connection | USB cable | USB cable | Cable gland for hardwire connection | USB cable |
| | Phillips head screw driver | Phillips head screw driver | Cable gland for hardwire connection | Cable gland for hardwire connection | Phillips head screw driver | Cable gland for hardwire connection | |
| Phillips head screw driver | Phillips head screw driver | Phillips head screw driver | | | | | |
| | | | | | | | |
| EFFICIENCY | 94 | 94 | 94 | 94 | 94 | 94 | 94 | 94 |
| INTERNAL BYPASS | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| | | | | | | | |
| WARRANTY AND SUPPORT | | | | | | | | |
| STANDARD FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY |
| -2 years | -2 years | -2 years | -2 years | -2 years | -2 years | -2 years | -2 years |
| -Parts, electronics, and batteries coverage | -Parts, electronics, and batteries coverage | -Parts, electronics, and batteries coverage | -Parts, electronics, and batteries coverage | -Parts, electronics, and batteries coverage | -Parts, electronics, and batteries coverage | -Parts, electronics, and batteries coverage | -Parts, electronics, and batteries coverage |
| -Standard ground shipping | -Standard ground shipping | -Standard ground shipping | -Standard ground shipping | -Standard ground shipping | -Standard ground shipping | -Standard ground shipping | -Standard ground shipping |
| -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical support |
| | | | | | | | |
| EXTENDED SERVICE PLANS | ADVANCED DEPOT EXCHANGE | ADVANCED DEPOT EXCHANGE | ADVANCED DEPOT EXCHANGE | ADVANCED DEPOT EXCHANGE | ADVANCED DEPOT EXCHANGE | ADVANCED DEPOT EXCHANGE | ADVANCED DEPOT EXCHANGE | ADVANCED DEPOT EXCHANGE |
| -5-year depot repair: 9SW5Y-11000UC | -5-year depot repair: 9SW5Y-11000UC | -5-year depot repair: 9SW5Y-11000UC | -5-year depot repair: 9SW5Y-11000UC | -5-year depot repair: 9SW5Y-11000UC | -5-year depot repair: 9SW5Y-11000UC | -5-year depot repair: 9SW5Y-11000UC | -5-year depot repair: 9SW5Y-11000UC |
| -Expedited parts coverage for 5 years | -Expedited parts coverage for 5 years | -Expedited parts coverage for 5 years | -Expedited parts coverage for 5 years | -Expedited parts coverage for 5 years | -Expedited parts coverage for 5 years | -Expedited parts coverage for 5 years | -Expedited parts coverage for 5 years |
| -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage |
| -Next business day shipping | -Next business day shipping | -Next business day shipping | -Next business day shipping | -Next business day shipping | -Next business day shipping | -Next business day shipping | -Next business day shipping |
| -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical support |
| | | | | | | | |
| ON-SITE 24X7, NEXT DAY RESPONSE | ON-SITE 24X7, NEXT DAY RESPONSE | ON-SITE 24X7, NEXT DAY RESPONSE | ON-SITE 24X7, NEXT DAY RESPONSE | ON-SITE 24X7, NEXT DAY RESPONSE | ON-SITE 24X7, NEXT DAY RESPONSE | ON-SITE 24X7, NEXT DAY RESPONSE | ON-SITE 24X7, NEXT DAY RESPONSE |
| 2 YEAR UPGRADE: WUN72XXX-11000UC | 2 YEAR UPGRADE: WUN72XXX-11000UC | 2 YEAR UPGRADE: WUN72XXX-11000UC | 2 YEAR UPGRADE: WUN72XXX-11000UC | 2 YEAR UPGRADE: WUN72XXX-11000UC | 2 YEAR UPGRADE: WUN72XXX-11000UC | 2 YEAR UPGRADE: WUN72XXX-11000UC | 2 YEAR UPGRADE: WUN72XXX-11000UC |
| -On-site expedited parts and labor coverage for first 2 years | -On-site expedited parts and labor coverage for first 2 years | -On-site expedited parts and labor coverage for first 2 years | -On-site expedited parts and labor coverage for first 2 years | -On-site expedited parts and labor coverage for first 2 years | -On-site expedited parts and labor coverage for first 2 years | -On-site expedited parts and labor coverage for first 2 years | -On-site expedited parts and labor coverage for first 2 years |
| -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage |
| -Eaton on-site labor coverage | -Eaton on-site labor coverage | -Eaton on-site labor coverage | -Eaton on-site labor coverage | -Eaton on-site labor coverage | -Eaton on-site labor coverage | -Eaton on-site labor coverage | -Eaton on-site labor coverage |
| -24x7 coverage, next day response | -24x7 coverage, next day response | -24x7 coverage, next day response | -24x7 coverage, next day response | -24x7 coverage, next day response | -24x7 coverage, next day response | -24x7 coverage, next day response | -24x7 coverage, next day response |
| -Next day shipping | -Next day shipping | -Next day shipping | -Next day shipping | -Next day shipping | -Next day shipping | -Next day shipping | -Next day shipping |
| -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical support |
| | | | | | | | |
| 3 YEAR FLEX PLAN: FLN73XXX-11000UC | 3 YEAR FLEX PLAN: FLN73XXX-11000UC | 3 YEAR FLEX PLAN: FLN73XXX-11000UC | 3 YEAR FLEX PLAN: FLN73XXX-11000UC | 3 YEAR FLEX PLAN: FLN73XXX-11000UC | 3 YEAR FLEX PLAN: FLN73XXX-11000UC | 3 YEAR FLEX PLAN: FLN73XXX-11000UC | 3 YEAR FLEX PLAN: FLN73XXX-11000UC |
| -On-site parts and labor coverage for years 3 to 5 | -On-site parts and labor coverage for years 3 to 5 | -On-site parts and labor coverage for years 3 to 5 | -On-site parts and labor coverage for years 3 to 5 | -On-site parts and labor coverage for years 3 to 5 | -On-site parts and labor coverage for years 3 to 5 | -On-site parts and labor coverage for years 3 to 5 | -On-site parts and labor coverage for years 3 to 5 |
| -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage | -Parts, electronics and UPS batteries coverage |
| -24x7 on-site labor coverage, next day repsonse | -24x7 on-site labor coverage, next day repsonse | -24x7 on-site labor coverage, next day repsonse | -24x7 on-site labor coverage, next day repsonse | -24x7 on-site labor coverage, next day repsonse | -24x7 on-site labor coverage, next day repsonse | -24x7 on-site labor coverage, next day repsonse | -24x7 on-site labor coverage, next day repsonse |
| -Next day shipping | -Next day shipping | -Next day shipping | -Next day shipping | -Next day shipping | -Next day shipping | -Next day shipping | -Next day shipping |
| -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical support | -Technical suppor | -Technical support |
| | | | | | | | |

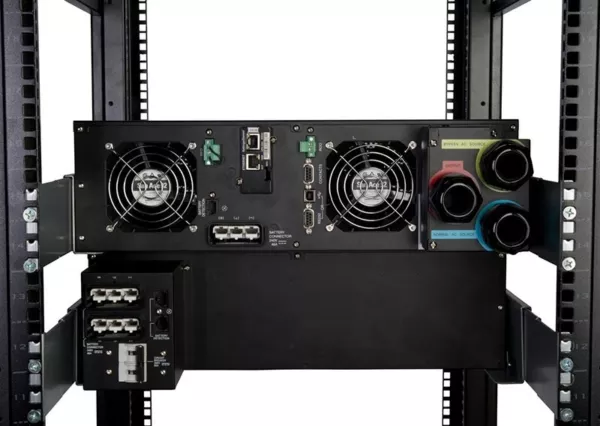

Eaton 9PX UPS, 6U, 8 kVA, 7.2 kW, Hardwired input, Outputs: (3) L6-30R, Hardwired, 208V, TAA Compliant
Delivering premium, double-conversion backup power and scalable battery runtimes for servers, voice/data networks and storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. An ENERGY STAR qualified UPS, the 9PX’s graphical LCD interface and robust target power management software makes managing your UPS easy – even in virtualized environments.
