Description
***END OF LIFE***

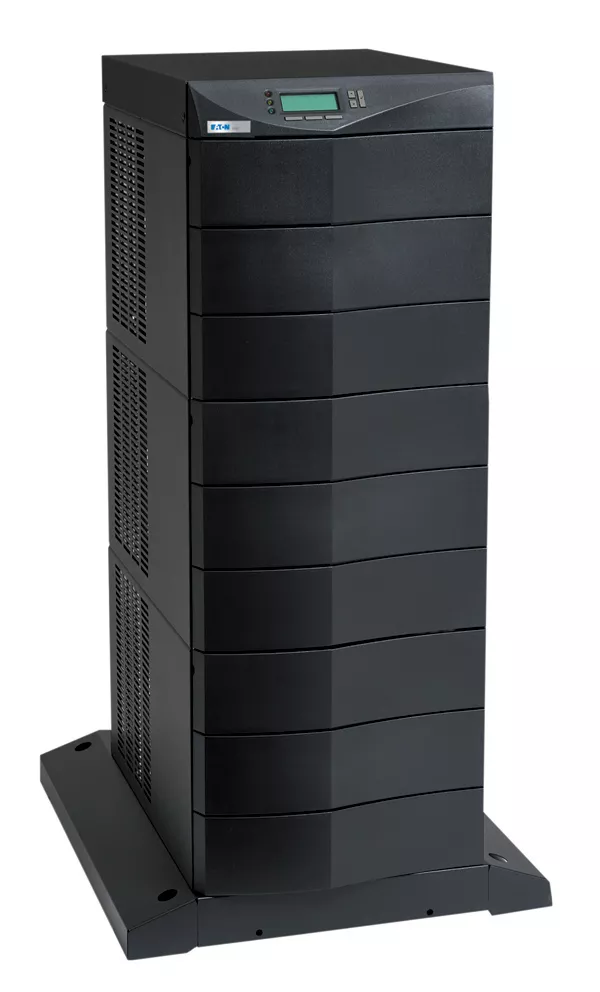

The Eaton 9170+ has reached its end of production. A few models may still be available for purchase. Call or click our Request A Quote button below for more information.
REPLACEMENT MODEL:
9170+ UPS
Call for Price: 855-665-3829
Email For Price
***END OF LIFE***
The Eaton 9170+ has reached its end of production. A few models may still be available for purchase. Call or click our Request A Quote button below for more information.
REPLACEMENT MODEL:
Specifications
9170+ Technical Specifications | |
|---|---|
| GENERAL | |
| Topology | True online, double-conversion |
| Diagnostics | Full system self-test on power up |
| UPS Bypass | Automatic on overload or UPS failure |
| ELECTRICAL INPUT | |
| Voltage | 208-240 VAC or 200/100, 208/120, 220/110,240/120 Vac |
| Input Voltage Range | 176-276 V |
| Input Power Factor | 0.98 |
| Frequency | 50/60 Hz (± 3Hz) |
| ELECTRICAL OUTPUT | |
| On Utility Voltage Regulation | ±3% of nominal |
| On Battery Voltage Regulation | ±3% of nominal |
| Efficiency | 88% normal operation |
| 97% High performance (optional programmable) | |
| Frequency Regulation | ±3 Hz online; ±0.1 Hz on battery |
| COMMUNICATIONS | |
| LCD Display | 4 x 20 character backlit display, programmable |
| Language Support | English, French, Spanish and German |
| Communication ports | RS232, (DB9) (std) |
| Communication slots | 2 Slots (standard) |
| SNMP capability | SNMP/Web enabled card options |
| Contact Closures | Relay Card option |
| Emergency Power off (EPO) | Input for external EPO |
| BATTERY | |
| Internal Battery Type | Sealed, lead-acid; maintenance free |
| Battery Runtime | See Battery Runtimes below |
| Battery Replacement | Hot-swappable |
| Recharge Time | <4 hours standard |
| ENVIRONMENTAL & SAFETY | |
| Safety Markings | UL, CUL |
| EMC Markings | FCC class A |
| Surge Suppression | IEEE/ANSI C62.41 |
| Audible Noise | <50dBA |
| Ambient Operating / Storage Temperature | 0 to 40ºC (32 to 104ºF)/-20 to 40ºC (60ºC w/o batt) -4 to 104ºF (140º F w/o batt) |
| Relative Humidity | 50 to 90%, non-condensing |
| REPO Port | Meets NEC code 645-11 intent and UL requirements |
You may also like…
-
9PXM8S4K-PD
***Pre-Configured Setup***
Eaton 9PXM UPS, 4kVA scaleable to 16kVA, Online Double-Conversion, Single Phase, Hardwired input, Outputs: (4) 5-20, (2) L6-30, 208-240V, Rack/Tower, 14U
Includes:
(1) 8-slot enclosure
(1) power module
(2) battery modules
(1) network cardREQUEST A QUOTE, OR CALL OUR SALES DEPARTMENT FOR HELP WITH A CUSTOM BUILT 9PXM
Call for Price: 855-665-3829
Email For Price
-
9PXM8S12K-PD
***Pre-Configured Setup***
Eaton 9PXM UPS, 12kVA scaleable to 16kVA, Online Double-Conversion, Single Phase, Hardwired input, Outputs: (4) 5-20, (2) L6-30, 208-240V, Rack/Tower, 14U
Includes:
(1) 8-slot enclosure
(3) power modules
(6) battery modules
(1) network cardREQUEST A QUOTE, OR CALL OUR SALES DEPARTMENT FOR HELP WITH A CUSTOM BUILT 9PXM
Call for Price: 855-665-3829
Email For Price
-

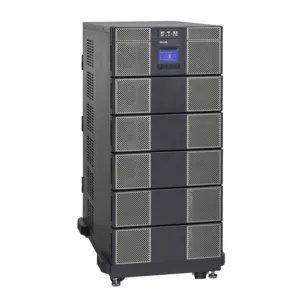

9PXM12S8K-PD
