Eaton 5PX EBM 48V RT2U, Use with 5PX1000RT, 5PX1500RT, 5PX2200RT

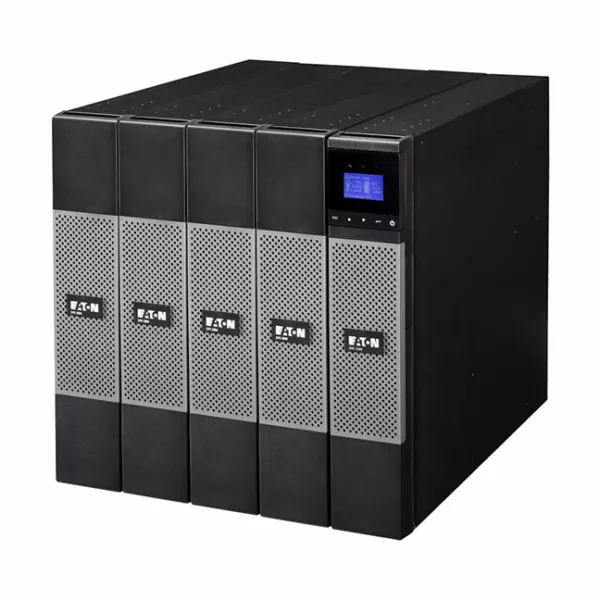

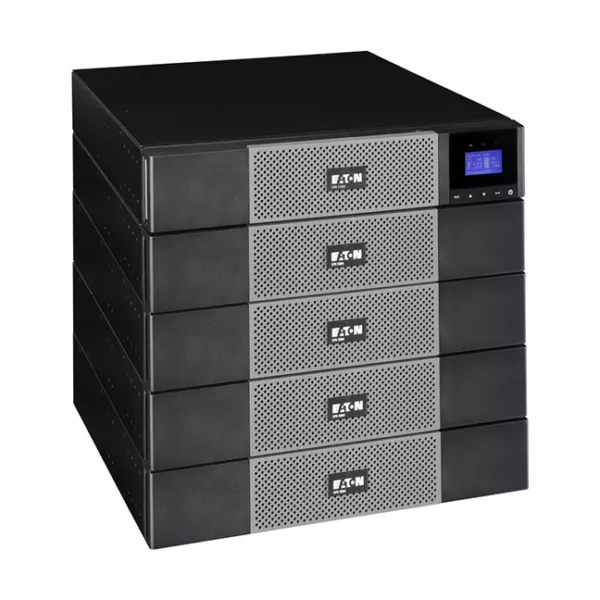

Add runtime to your Eaton 5PX UPS system with extended battery modules (EBM). Add up to 4 line-and-match EBM units per UPS. Batteries are sealed, maintenance free lead-acid with ABM technology. ABM’s exclusive 3-Stage charging extends battery service life up to 50% and provides advance warning for battery replacement.
| Weight | 72 lbs |
|---|---|
| Dimensions | 20.0 × 17.4 × 3.4 in |
5PX EBM Technical Specifications | |||||
|---|---|---|---|---|---|
| GENERAL | |||||
| PRODUCT NAME | Eaton 5PX extended battery module (EBM) | Eaton 5PX extended battery module (EBM) | Eaton 5PX extended battery module (EBM) | Eaton 5PX extended battery module (EBM) | Eaton 5PX extended battery module (EBM) |
| CATALOG NUMBER | 5PXEBM48RT | 5PXEBM72RT2U | 5PXEBM72RT3U | 5PXEBM48RTUS *TAA COMPLIANT* | 5PXEBM72RT2US *TAA COMPLIANT* |
| USE WITH | 5PX1000RT, 5PX1500RT, 5PX2200RT | 5PX3000RT2U | 5PX3000RT3U | 5PX1000RT, 5PX1500RT, 5PX2200RT | 5PX3000RT2U |
| PRODUCT LENGTH | 522 MM | 647 MM | 497 MM | 522 MM | 647 MM |
| PRODUCT HEIGHT | 86.2 MM | 86.2 MM | 130.7 MM | 86.2 MM | 86.2 MM |
| PRODUCT WIDTH | 441.2 MM | 441.2 MM | 441.2 MM | 441.2 MM | 441.2 MM |
| PRODUCT WEIGHT | 32.8KG | 46.39 KG | 44.26 KG | 32.8KG | 46.39 KG |
| WARRANTY | 3 year on electronics, 3 year on batteries with registration 2 year | 3 year on electronics, 3 year on batteries with registration 2 year | 3 year on electronics, 3 year on batteries with registration 2 year | 3 year on electronics, 3 year on batteries with registration 2 year | 3 year on electronics, 3 year on batteries with registration 2 year |
| COMPLIANCES | FCC Part 15 CISPR22 Class A / FCC part 15 Class A | C-Tick Compliant CE Marked FCC Part 15 CCC Marked CISPR 22 Class B | FCC Part 15 CISPR22 Class A / FCC part 15 Class A TAA Compliant | TAA Compliant | |
| CERTIFICATIONS | EN 62040-2:2006 | IEC/EN 62040-1 IEC/EN 62040-2 UL 1778 | EN 62040-2:2006 | EN 62040-2:2006 | IEC/EN 62040-1 IEC/EN 62040-2 UL 1778 |
| BATTERY | |||||
| BATTERY QUANTITY | 8 | 12 | 12 | 8 | 12 |
| BATTERY RATING | 12V/9 Ah | 12V/9 Ah | 12V/9 Ah | 12V/9 Ah | 12V/9 Ah |
| ELECTRICAL OUTPUT | |||||
| BATTERY TYPE | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid | Sealed, lead-acid |
| OUTPUT WAVEFORM | Sine wave | Sine wave | Sine wave | Sine wave | Sine wave |
| ELECTRICAL INPUT | |||||
| INPUT CONNECTION | C14 | 5-15P | C14 | C14 | 5-15P |
| ADDITIONAL SPECIFICATIONS | |||||
| CONSTRUCTION TYPE | Free standing model | Free standing model | Free standing model | Free standing model | Free standing model |
| PACKAGE CONTENTS | EBM power cable EBM detection cable Rack-mounting kit Mounting Plate QuickStart Safety Instructions | EBM power cable EBM detection cable Rack-mounting kit Mounting Plate QuickStart Safety Instructions | EBM power cable EBM detection cable Rack-mounting kit Mounting Plate QuickStart Safety Instructions | EBM power cable EBM detection cable Rack-mounting kit Mounting Plate QuickStart Safety Instructions | EBM power cable EBM detection cable Rack-mounting kit Mounting Plate QuickStart Safety Instructions |
| COLOR | Black/silver | Black/silver | Black/silver | Black/silver | Black/silver |
| RACK MOUNTING KIT | Yes | Yes | Yes | Yes | Yes |
| TYPE OF ACCESSORY | Other | Other | Other | Other | Other |
| WARRANTY AND SUPPORT | |||||
| STANDARD FACTORY WARRANTY | 2-YEAR FACTORY WARRANTY -2 years -Standard ground shipping -Technical support | 2-YEAR FACTORY WARRANTY -2 years -Standard ground shipping -Technical support | 2-YEAR FACTORY WARRANTY -2 years -Standard ground shipping -Technical support | 2-YEAR FACTORY WARRANTY -2 years -Standard ground shipping -Technical support | 2-YEAR FACTORY WARRANTY -2 years -Standard ground shipping -Technical support |
| EXTENDED SERVICE PLANS | ADVANCED DEPOT EXCHANGE 5-YEAR DEPOT REPAIR -Expedited parts coverage for 5 years -Next business day shipping -Technical support ON-SITE 24X7, NEXT DAY RESPONSE 2 YEAR UPGRADE -On-site expedited parts and labor coverage for first 2 years -Eaton on-site labor coverage -24x7 coverage, next day response -Next day shipping -Technical support 3 YEAR FLEX PLAN -On-site parts and labor coverage for years 3 to 5 -24x7 on-site labor coverage, next day response -Next day shipping -Technical support *For external battery coverage pricing, reach out to your Eaton representative | ADVANCED DEPOT EXCHANGE 5-YEAR DEPOT REPAIR -Expedited parts coverage for 5 years -Next business day shipping -Technical support ON-SITE 24X7, NEXT DAY RESPONSE 2 YEAR UPGRADE -On-site expedited parts and labor coverage for first 2 years -Eaton on-site labor coverage -24x7 coverage, next day response -Next day shipping -Technical support 3 YEAR FLEX PLAN -On-site parts and labor coverage for years 3 to 5 -24x7 on-site labor coverage, next day response -Next day shipping -Technical support *For external battery coverage pricing, reach out to your Eaton representative | ADVANCED DEPOT EXCHANGE 5-YEAR DEPOT REPAIR -Expedited parts coverage for 5 years -Next business day shipping -Technical support ON-SITE 24X7, NEXT DAY RESPONSE 2 YEAR UPGRADE -On-site expedited parts and labor coverage for first 2 years -Eaton on-site labor coverage -24x7 coverage, next day response -Next day shipping -Technical support 3 YEAR FLEX PLAN -On-site parts and labor coverage for years 3 to 5 -24x7 on-site labor coverage, next day response -Next day shipping -Technical support *For external battery coverage pricing, reach out to your Eaton representative | ADVANCED DEPOT EXCHANGE 5-YEAR DEPOT REPAIR -Expedited parts coverage for 5 years -Next business day shipping -Technical support ON-SITE 24X7, NEXT DAY RESPONSE 2 YEAR UPGRADE -On-site expedited parts and labor coverage for first 2 years -Eaton on-site labor coverage -24x7 coverage, next day response -Next day shipping -Technical support 3 YEAR FLEX PLAN -On-site parts and labor coverage for years 3 to 5 -24x7 on-site labor coverage, next day response -Next day shipping -Technical support *For external battery coverage pricing, reach out to your Eaton representative | ADVANCED DEPOT EXCHANGE 5-YEAR DEPOT REPAIR -Expedited parts coverage for 5 years -Next business day shipping -Technical support ON-SITE 24X7, NEXT DAY RESPONSE 2 YEAR UPGRADE -On-site expedited parts and labor coverage for first 2 years -Eaton on-site labor coverage -24x7 coverage, next day response -Next day shipping -Technical support 3 YEAR FLEX PLAN -On-site parts and labor coverage for years 3 to 5 -24x7 on-site labor coverage, next day response -Next day shipping -Technical support *For external battery coverage pricing, reach out to your Eaton representative |
